Article number 690500

Base luminaire

type ..0500

273,90

Specifications

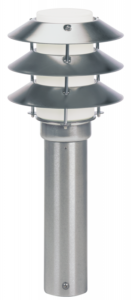

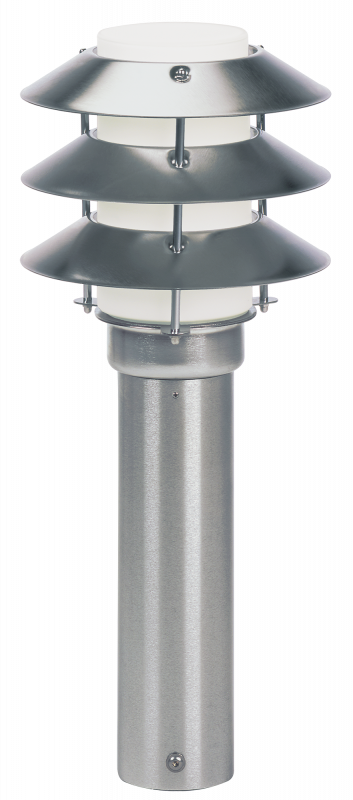

Albert base luminaire 690500 made of stainless steel with mounting plate, opal glass. with rotationally symmetrical light distribution, equipped for 1 x AGL 75 Watt, socket E27.protection class IP 44 – protection class : d 210 x d 80 x 500 mm for mounting on a foundation or on the ground 690010

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight 3,20 kg
Light output

2-seitig

Nominal voltage

230 V

Suitable for number of lamps

1

With base plate

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Style

Edelstahl, Modern

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Type of control gear

Not required

Voltage type

AC

Number of poles

3

Type of wiring

Suitable for through wiring

Degree of protection (IP)

IP44

Height

< 700 mm

Housing material quality

Stainless steel 304 (V2A)

Height/depth

500 mm

Light sharing

Symmetric

Power factor

1

Beam angle

Open beam/diffuse

Light output

Direct/indirect

Diameter

210 mm

Max. system power

75 W

Type of luminaire

Pedestal luminaire

Protection class

I

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 27 KB

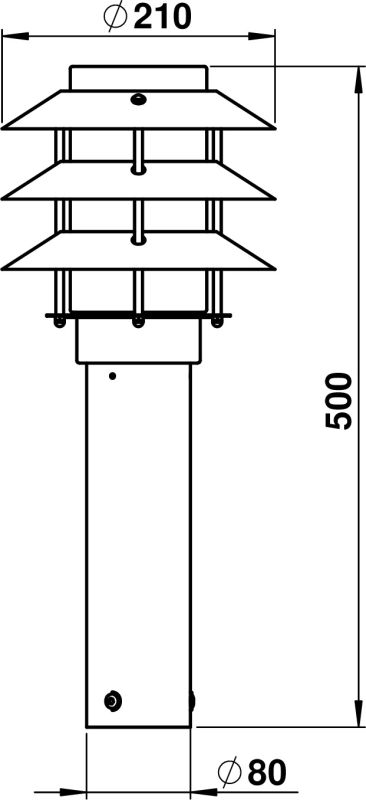

Dimensioned drawing
PDF | 21 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210259 - G 259, glass opal matt Thread 84,5 mm -long show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show
