Data sheet
Article number
Select a color, please

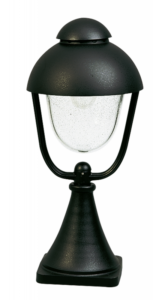

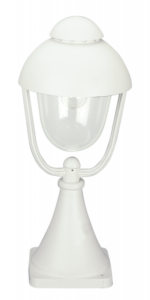

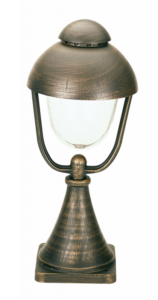

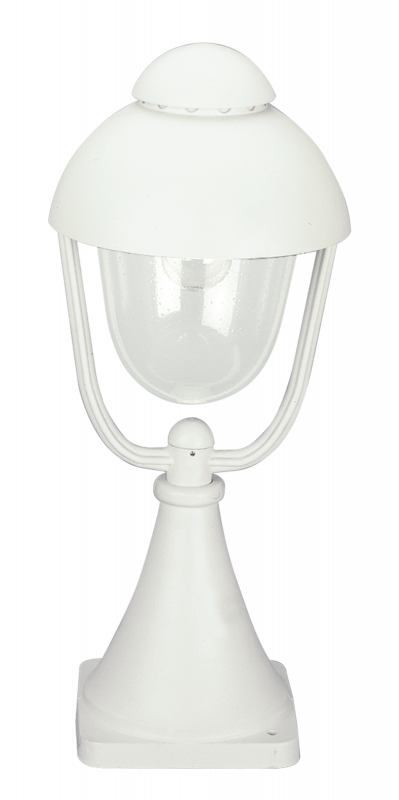

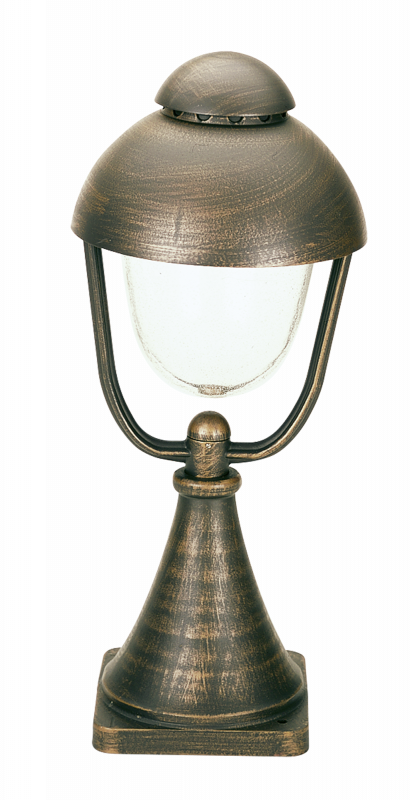

Base luminaire
type ..0515
€346,90
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Brown-Brass, White
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass transparent
| Weight | N/A |
|---|---|
| Type of luminaire | Pedestal luminaire |
| Type of wiring | Suitable for through wiring |

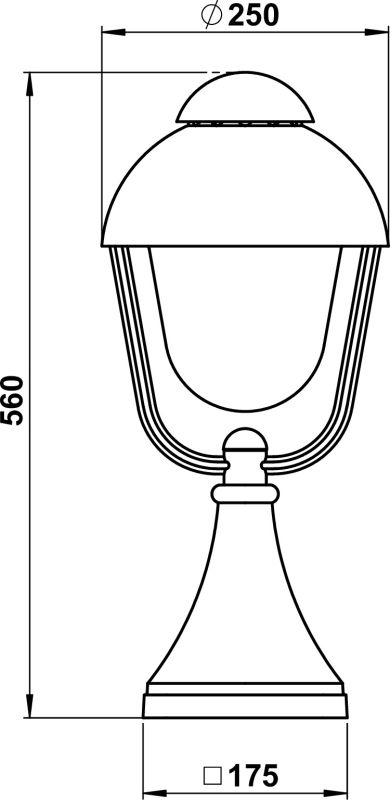

| Diameter | 250 mm |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Number of poles | 3 |
| With base plate | Yes |
| Nominal voltage | 230 V |
| Voltage type | AC |
| Surface protection | Lacquered |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Suitable for number of lamps | 1 |
| Type of control gear | Not required |
| Max. system power | 75 W |
| Light output | Direct/indirect |
| Beam angle | Open beam/diffuse |
| Power factor | 1 |
| Height/depth | 560 mm |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Protection class | I |
| Degree of protection (IP) | IP44 |
| Height | < 700 mm |
| Light sharing | Symmetric |
| Light output | 2-seitig |
| Style | Landhaus |
| Shape | Eckig |
Documents and files
Data sheet
Related products
-
Corner bracket round type ..1005excl. VAT
-
Corner bracket angular type ..1006excl. VAT
-
Corner bracket type ..1003excl. 19% VAT
-

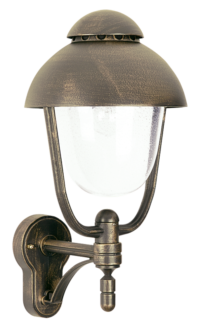

Wall light type ..0688excl. VAT
