Data sheet
Article number
Select a color, please
Base luminaire
type ..0529
€229,80
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing

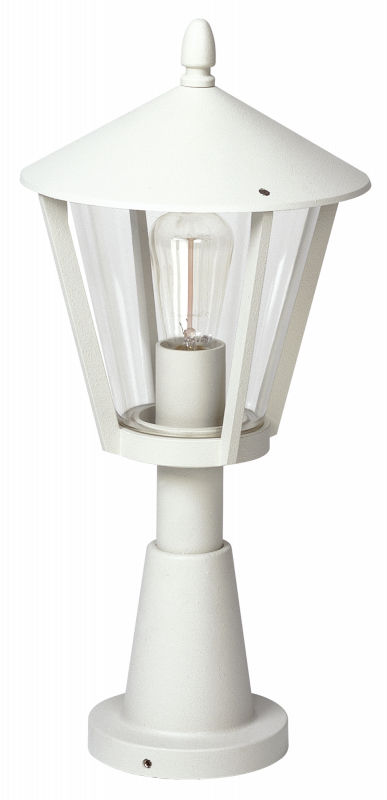

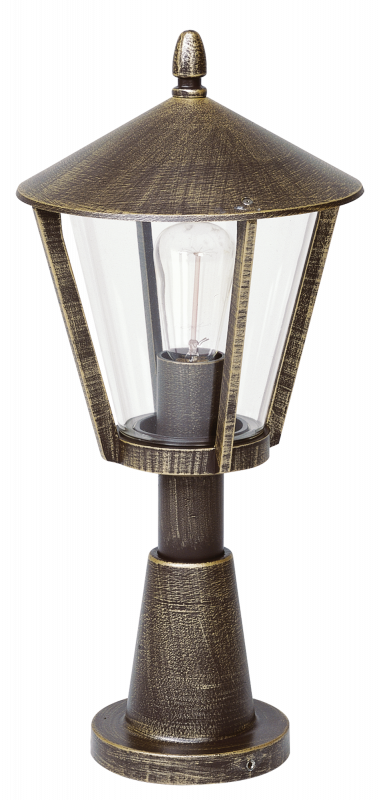

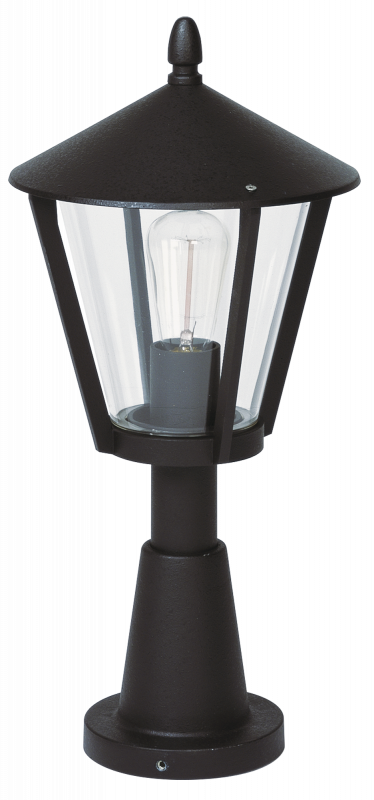

Black, Brown-Brass, White
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Plastic, transparent
| Weight | N/A |
|---|---|
| Type of luminaire | Pedestal luminaire |
| Type of wiring | Suitable for through wiring |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Number of poles | 3 |
| Nominal voltage | 230 V |
| With base plate | Yes |
| Voltage type | AC |
| Surface protection | Lacquered |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Suitable for number of lamps | 1 |

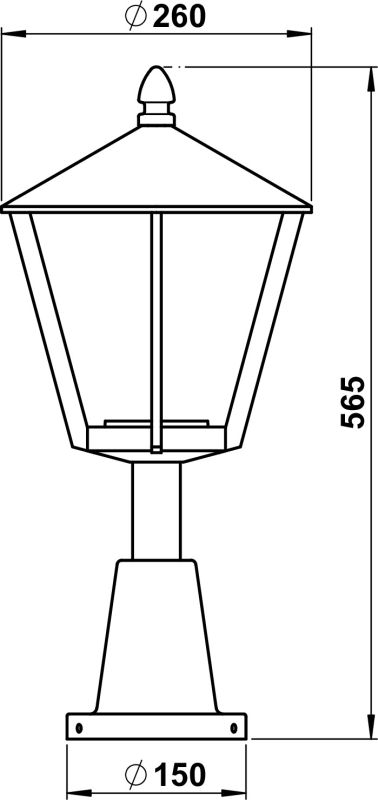

| Diameter | 260 mm |
| Type of control gear | Not required |
| Max. system power | 75 W |
| Height | < 700 mm |
| Power factor | 1 |
| Height/depth | 565 mm |
| Light output | Direct/indirect |
| Protection class | I |
| Degree of protection (IP) | IP44 |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Light sharing | Symmetric |
| Light output | 2-seitig |
| Style | Landhaus |
| Beam angle | Open beam/diffuse |
| Shape | Eckig |
