Data sheet
Article number
Select a color, please

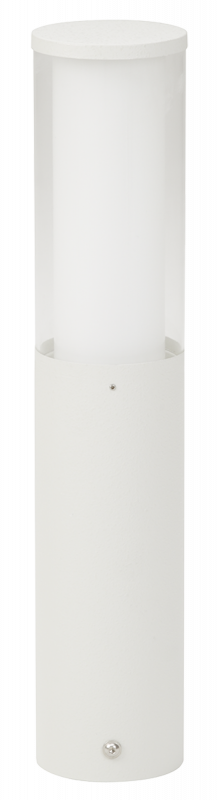

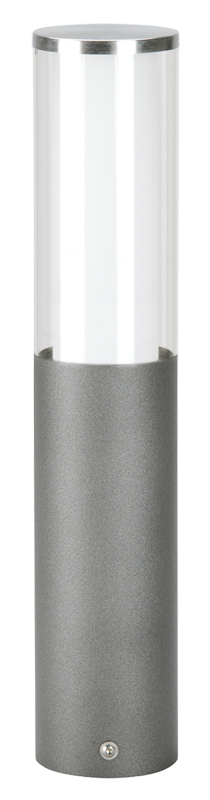

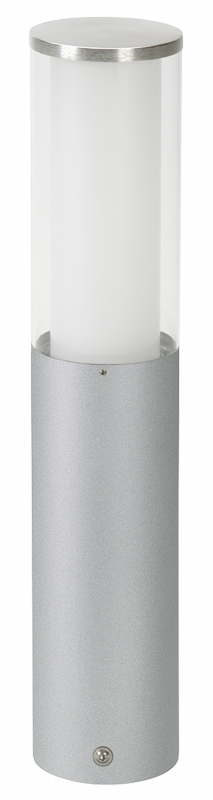

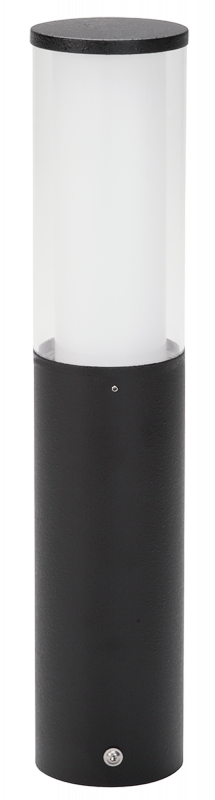

Base luminaire
type ..0545
€247,10 – €284,20
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W, 1 - 75 W
Material cover
Plastic, opal
| Weight | N/A |
|---|---|
| Type of luminaire | Pedestal luminaire |
| Surface protection | Lacquered |
| Type of control gear | Not required |
| Nominal voltage | 230 V |
| Voltage type | AC |
| With base plate | Yes |
| Suitable for number of lamps | 1 |
| Type of wiring | Suitable for through wiring |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Power factor | 1 |
| Connection type | Screwed terminal |
| Conductor cross section | 2.5 mm² |
| Number of poles | 3 |

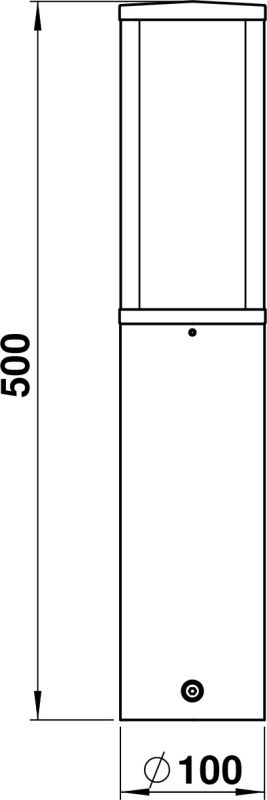

| Height/depth | 500 mm |
| Light sharing | Symmetric |
| Max. system power | 20 W, 75 W |
| Protection class | I |
| Degree of protection (IP) | IP44 |
| Style | Bicolor, Edelstahl, Modern |
| Height | < 700 mm |
| Width | 100 mm |
| Diameter | 100 mm |
| Light output | Direct/indirect |
| Beam angle | Open beam/diffuse |
| Light output | 2-seitig |
| Shape | Eckig |
