Article number 690550

Base luminaire

type ..0550

This product is no longer in our assortment.
You can find a successor of this product listed below.

Nicht lieferbar

Specifications

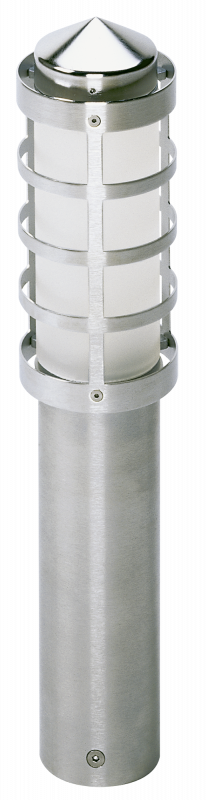

Albert base luminaire 690550 made of stainless steel, with acrylic hollow glass. Designed for 1 x fluorescent lamp TC-D 18W, socket G24d-2, for mounting on a foundation or the earth burial base 690010.protection class IP 44 – protection class : d 103 x d 80 x 510 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Compact fluorescent lamp
Lamp holder
E27
Suitable for lamp power
18 W
Material cover
Plastic, structured
Weight 2,60 kg
Conductor cross section

2.5 mm²

Degree of protection (IP)

IP44

Suitable for number of lamps

1

With control gear

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Protection class

I

Type of control gear

Low-loss ballast inductive

Nominal voltage

230 V

Voltage type

AC

With base plate

Yes

Lowest energy efficiency class of the exchangeable lamp

E

Exchangeable control gear

Yes

Power factor

1

Max. system power

18 W

Height/depth

510 mm

Type of luminaire

Pedestal luminaire

Beam angle

Open beam/diffuse

Light sharing

Symmetric

Light output

Direct/indirect

Diameter

103 mm

Type of wiring

Suitable for through wiring

Number of poles

3

Light output

2-seitig

Connection type

Screwed terminal

Height

< 700 mm

Housing material quality

Stainless steel 304 (V2A)

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 28 KB

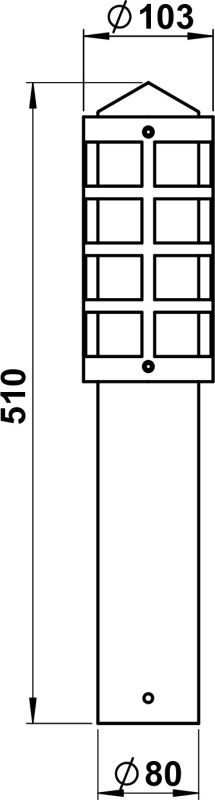

Dimensioned drawing
PDF | 18 KB
Full catalog 21 / 22
PDF | 39 MB
Successor
690584 - Base luminaire type ..0584 show
Spare parts
10260135 - G-135, acrylic satin 178,5 mm show
Accessories
690010 - Earth mounting base type ..0010 show
