Article number Select a color, please

Base luminaire

type ..0554

246,70284,50

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Plastic, transparent
Weight N/A
Type of luminaire

Pedestal luminaire

Type of control gear

Not required

Nominal voltage

230 V

Voltage type

AC

Surface protection

Lacquered

Type of wiring

Suitable for through wiring

With base plate

Yes

Lowest energy efficiency class of the exchangeable lamp

E

Height/depth

405 mm

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Number of poles

3

Suitable for number of lamps

1

Highest energy efficiency class of the exchangeable lamp

A++

Protection class

I

Impact strength

IK08

Degree of protection (IP)

IP54

Height

< 700 mm

Style

Edelstahl, Modern

Power factor

1

Light sharing

Symmetric

Diameter

200 mm

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Max. system power

75 W

Light output

2-seitig

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 98 KB

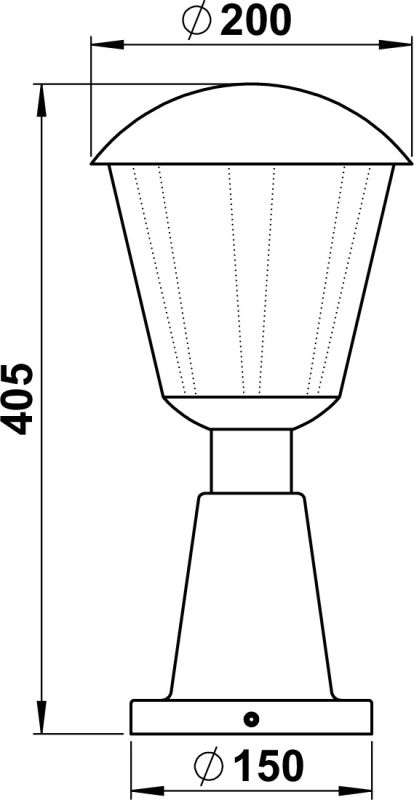

Dimensioned drawing
PDF | 87 KB
Light distribution curve - Eulumdat/LDT
LDT | 879 B
Offertext
For: 620554
TXT | 281 B
Offertext
For: 660554
TXT | 303 B
Offertext
For: 680554
TXT | 303 B
Offertext
For: 690554
TXT | 277 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
10260141 - G 141, lamp glasses L-750 show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
90750102 - LED Retrofit Filament show
