Article number 690584

Base luminaire

type ..0584

453,00

Specifications

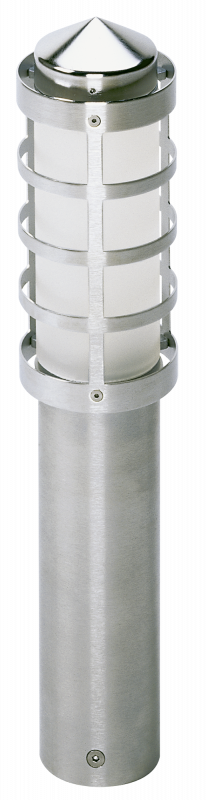

Albert base lamp 690584
made of stainless steel, with acrylic hollow glass. Equipped for 1 x lamp, socket E27, for mounting on a foundation or the earth burial base 690010. protection class IP 44 – protection class : d 103 x d 80 x 510 mm.

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Plastic, structured
Weight 2,50 kg
Light output

2-seitig

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

With base plate

Yes

Type of control gear

Not required

Nominal voltage

230 V

Voltage type

AC

Suitable for number of lamps

1

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Style

Edelstahl, Modern

Number of poles

3

Type of wiring

Suitable for through wiring

Type of luminaire

Pedestal luminaire

Diameter

103 mm

Power factor

1

Max. system power

75 W

Protection class

I

Degree of protection (IP)

IP44

Housing material quality

Stainless steel 304 (V2A)

Height/depth

510 mm

Light sharing

Symmetric

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Height

< 700 mm

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 73 KB

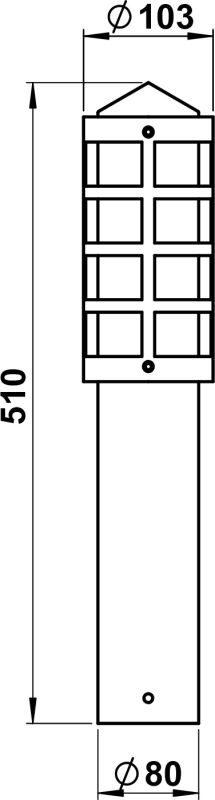

Dimensioned drawing
PDF | 18 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
10260135 - G-135, acrylic satin 178,5 mm show
Accessories
690010 - Earth mounting base type ..0010 show
90750309 - LED Retrofit Tube show
