Data sheet
Article number
Select a color, please

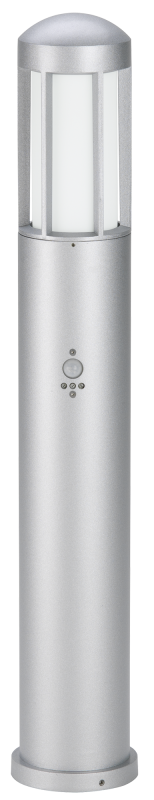

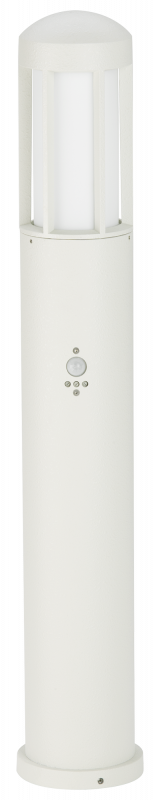

Bollard light
type ..2009
€483,50 – €556,30
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire with integrated motion detector.
Luminaire with integrated twilight switch.
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, Silver, White
With movement sensor
Yes
With light sensor
Yes
Lamp type
HV halogen lamp, Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
| Weight | N/A |
|---|---|
| Coverage | 90 ° |
| Type of control gear | Not required |
| Nominal voltage | 230 V |
| Voltage type | AC |
| Surface protection | Lacquered |
| Suitable for number of lamps | 1 |
| Number of poles | 3 |
| With base plate | Yes |
| Power factor | 1 |

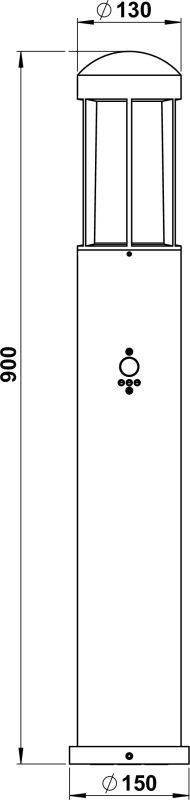

| Width | 150 mm |
| Light type | Standleuchte |
| Connection type | Screwed terminal |
| Conductor cross section | 2.5 mm² |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Type of wiring | Suitable for through wiring |
| Light output | Direct/indirect |
| Max. system power | 75 W |
| Protection class | I |
| Degree of protection (IP) | IP44 |
| Height | 700 – 1000 mm |
| Style | Modern |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Light sharing | Symmetric |
| Type of luminaire | Bollard luminaire |
| Beam angle | Open beam/diffuse |
| Height/depth | 900 mm |
| Light output | 2-seitig |
| Diameter | 130 mm |
| Shape | Eckig |
