Article number 692044

Bollard light

type ..2044

361,30

Specifications

Albert bollard light 692044 made of stainless steel with acrylic glass cylinder frosted. For 1 x lamp max. 20 W, socket E27.ready for connection with mounting plate for screwing onto a foundation or onto the ground mounting base type no. 690010.protection class IP 44 – protection class : d 80 x 900 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
LED Retrofit Product-Icon Luminaire is to be equipped with LED retrofit bulb.
Luminaire is to be equipped with LED retrofit bulb.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 20 W
Material cover
Plastic, structured
Weight 2,50 kg
Height/depth

900 mm

Voltage type

AC

Max. system power

20 W

Type of control gear

Not required

With base plate

Yes

Diameter

80 mm

Type of wiring

Suitable for through wiring

Protection class

I

Suitable for number of lamps

1

Highest energy efficiency class of the exchangeable lamp

A++

Nominal voltage

230 V

Connection type

Screwed terminal

Light sharing

Symmetric

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Housing material quality

Stainless steel 304 (V2A)

Degree of protection (IP)

IP44

Number of poles

3

Conductor cross section

2.5 mm²

Light output

2-seitig

Style

Edelstahl, Modern

Light type

Standleuchte

Height

700 – 1000 mm

Power factor

1

Type of luminaire

Bollard luminaire

Lowest energy efficiency class of the exchangeable lamp

E

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 32 KB

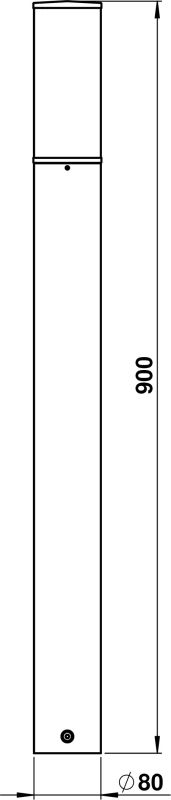

Dimensioned drawing
PDF | 21 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
10260371 - G-371, acrylic satin 190 mm show
Accessories
690010 - Earth mounting base type ..0010 show
90750309 - LED Retrofit Tube show
