Article number 662204

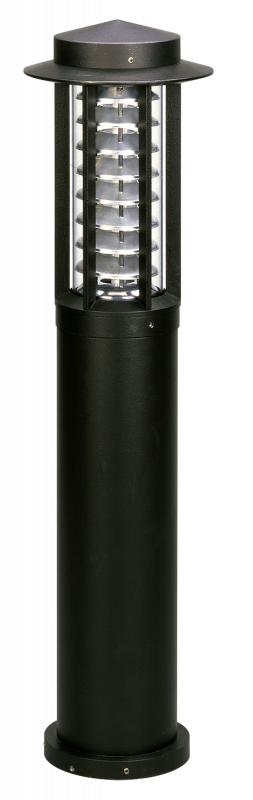

Bollard light

type ..2204

719,00

Specifications

Albert bollard luminaire 662204 made of corrosion-resistant cast aluminium, with highly transparent clear plexiglass and reflector made of highly specular anodised aluminium, equipped for 1 x TC-L 24W, socket 2G 11.ready for connection with mounting plate for screwing onto a foundation or onto the ground mounting base type no. 690010.colour: black – protection class IP 54 – protection class : d 250 x 1000 mm

Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Material housing
Aluminium
Colour housing
Black
Lamp type
Compact fluorescent lamp
Lamp holder
2G11
Suitable for lamp power
24 W
Material cover
Plastic, transparent
Weight 8,30 kg
Height/depth

1000 mm

Connection type

Screwed terminal

Highest energy efficiency class of the exchangeable lamp

A++

Light sharing

Symmetric

Light type

Standleuchte

Conductor cross section

2.5 mm²

Number of poles

3

Suitable for number of lamps

1

With control gear

Yes

Surface protection

Lacquered

Nominal voltage

230 V

Voltage type

AC/DC

Type of control gear

LED operating device current-controlled

With base plate

Yes

Diameter

260 mm

Light output

2-seitig

Degree of protection (IP)

IP54

Type of luminaire

Bollard luminaire

Power factor

1

Max. system power

27 W

Protection class

I

Height

700 – 1000 mm

Type of wiring

Suitable for through wiring

Exchangeable control gear

Yes

Lowest energy efficiency class of the exchangeable lamp

E

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 30 KB
Dimensioned drawing
PDF | 68 KB
Light distribution curve - Eulumdat/LDT
LDT | 4 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
10260235 - G-235, acrylic clear 120 x 3, 359 mm show
Accessories
690010 - Earth mounting base type ..0010 show
