Article number 692213

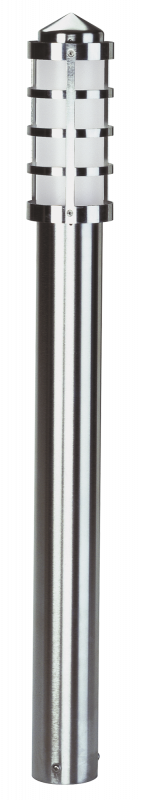

Bollard light

type ..2213

This product is no longer in our assortment.
You can find a successor of this product listed below.

Nicht lieferbar

Specifications

Albert bollard light 692213 made of stainless steel, with acrylic hollow glass. Equipped for 1 x fluorescent lamp TC-D 18W, socket G24d-2,for mounting on a foundation or the earth burial base 690010.protection class IP 44 – protection class : d 103 x d 80 x 900 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Compact fluorescent lamp
Lamp holder
G24d-2
Suitable for lamp power
18 W
Material cover
Plastic, structured
Weight 3,60 kg
Power factor

1

Conductor cross section

2.5 mm²

Nominal voltage

230 V

Voltage type

AC

Type of control gear

Low-loss ballast inductive

With base plate

Yes

Lowest energy efficiency class of the exchangeable lamp

E

With control gear

Yes

Light type

Standleuchte

Connection type

Screwed terminal

Number of poles

3

Light sharing

Symmetric

Suitable for number of lamps

1

Highest energy efficiency class of the exchangeable lamp

A++

Light output

2-seitig

Height

700 – 1000 mm

Housing material quality

Stainless steel 304 (V2A)

Height/depth

900 mm

Type of wiring

Suitable for through wiring

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Exchangeable control gear

Yes

Diameter

103 mm

Type of luminaire

Bollard luminaire

Max. system power

20 W

Protection class

I

Degree of protection (IP)

IP44

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 32 KB

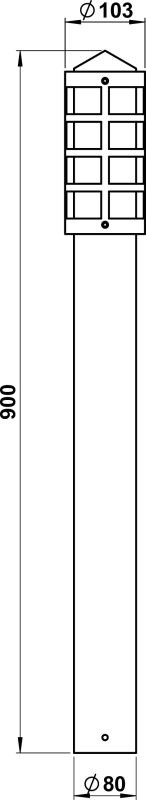

Dimensioned drawing
PDF | 21 KB
Light distribution curve - Eulumdat/LDT
LDT | 827 B
Full catalog 21 / 22
PDF | 39 MB
Successor
692284 - Bollard light type ..2284 show
Spare parts
10260135 - G-135, acrylic satin 178,5 mm show
Accessories
690010 - Earth mounting base type ..0010 show
690080 - Recessed housing with protective contact socket IP44 / D show
