Weight	N/A
Type of luminaire	Bollard luminaire
Number of poles	3
Surface protection	Lacquered
Energy efficiency class of the provided exchangeable built-in lamp	E
Voltage type	AC/DC
Type of control gear	LED operating device current-controlled
Highest energy efficiency class of the exchangeable lamp	A+
Colour rendering index CRI	80-89
With control gear	Yes
Lowest energy efficiency class of the exchangeable lamp	E
With base plate	Yes
Suitable for number of lamps	1
Max. system power	3 W
Type of wiring	Suitable for through wiring
Degree of protection (IP)	IP44
Power factor	0.9
Light type	Standleuchte

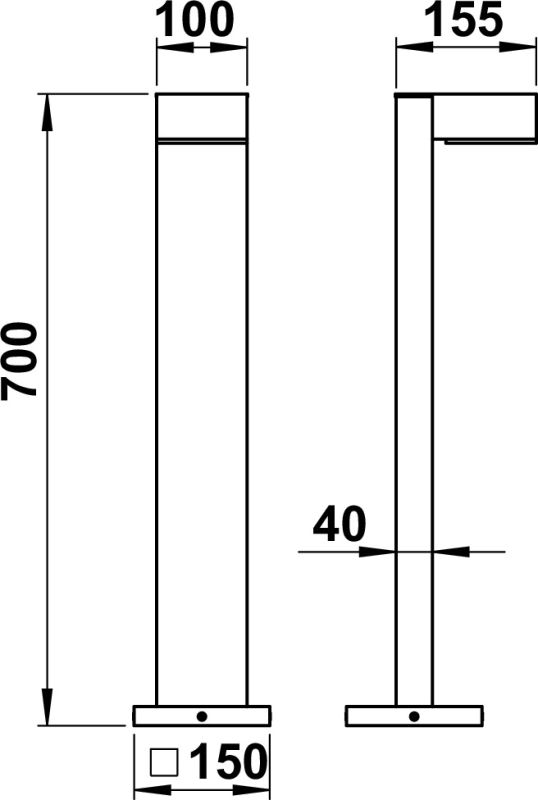

Height/depth	700 mm
Nominal voltage	230 V
Protection class	I
Light sharing	Asymmetric
Width	100 mm
Connection type	Screwed terminal
Colour of light	White
Height	< 700 mm, 700 – 1000 mm
Style	Bicolor, Modern
Exchangeable control gear	Yes
Light output	Indirect
Length	155 mm
Beam angle	Open beam/diffuse
Flickering value Pst LM	1
Stroboscope effect value SVM	0.4
Max. number of luminaires per miniature circuit breaker B16	20
Max. number of luminaires per miniature circuit breaker C16	30
Conductor cross section	2.5 mm²
Shape	Eckig

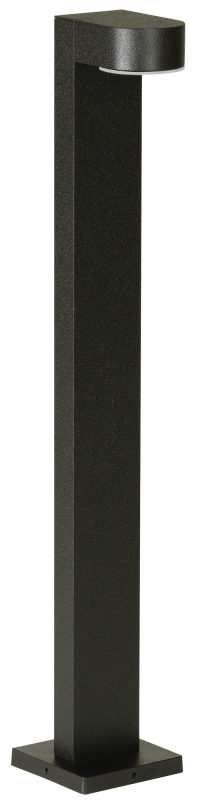

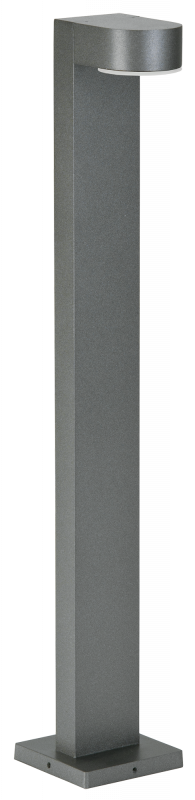

Bollard light
