Article number Select a color, please

Bollard light

type ..2240

283,40325,80

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Weight N/A
Type of luminaire

Bollard luminaire

Energy efficiency class of the provided exchangeable built-in lamp

E

Voltage type

AC

Nominal voltage

230 V

With control gear

Yes

Type of control gear

LED operating device voltage-controlled

Surface protection

Lacquered

Type of wiring

Suitable for through wiring

With base plate

Yes

Highest energy efficiency class of the exchangeable lamp

A+

Colour rendering index CRI

80-89

Height/depth

585 mm

Connection type

Screwed terminal

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Power factor

0.9

Diameter

100 mm

Suitable for number of lamps

1

Number of poles

3

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Light type

Standleuchte

Height

< 700 mm

Max. system power

10 W

Colour of light

White

Style

Modern

Exchangeable control gear

Yes

Light sharing

Symmetric

Conductor cross section

2.5 mm²

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Protection class

I

Light output

2-seitig

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 98 KB

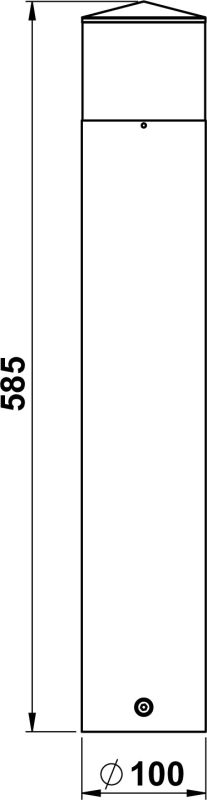

Dimensioned drawing
PDF | 88 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Offertext
For: 622240
TXT | 250 B
Offertext
For: 662240
TXT | 246 B
Offertext
For: 682240
TXT | 245 B
Offertext
For: 692240
TXT | 230 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
10260092 - G-92, acrylic -tube white show
Accessories
690010 - Earth mounting base type ..0010 show
