Data sheet
Article number 692246
Bollard light
type ..2246
€361,70
Manufacturer's Suggested Retail Price excl. 19% VAT
Specifications

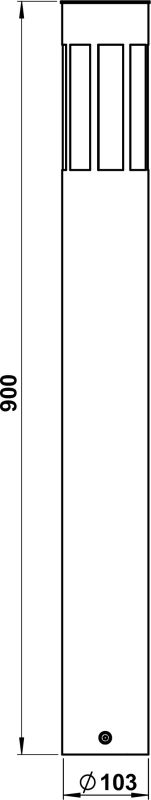

Albert bollard light 692246 in stainless steel with opal glass. Suitable for 1 x incandescent lamp A60 75W, socket E27.ready for connection with mounting plate for screwing onto a foundation or onto the ground socket type no. 690010.protection class IP 44 – protection class : d 103 x 900 mm
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
| Weight | 4,40 kg |
|---|---|
| Connection type | Screwed terminal |
| Voltage type | AC |
| Nominal voltage | 230 V |
| Max. system power | 75 W |
| Type of control gear | Not required |
| With base plate | Yes |
| Diameter | 103 mm |
| Type of wiring | Suitable for through wiring |
| Protection class | I |
| Suitable for number of lamps | 1 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Type of luminaire | Bollard luminaire |
| Housing material quality | Stainless steel 304 (V2A) |
| Height/depth | 900 mm |
| Light sharing | Symmetric |
| Light output | Direct/indirect |
| Beam angle | Open beam/diffuse |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Degree of protection (IP) | IP44 |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Light output | 2-seitig |
| Style | Edelstahl, Modern |
| Light type | Standleuchte |
| Height | 700 – 1000 mm |
| Power factor | 1 |
| Shape | Eckig |
