Article number 692261

Bollard light

type ..2261

285,10

Specifications

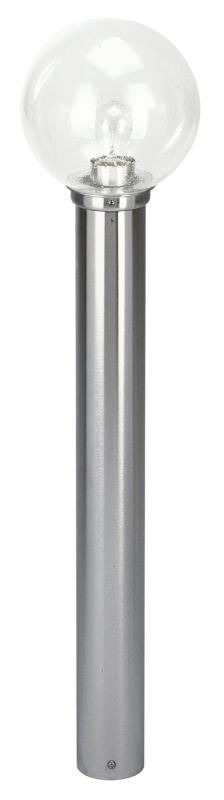

Albert bollard light 692261 made of stainless steel with clear bubble glass sphere d 200 for 1 bulb A 60 75W, socket E 27.ready to be screwed onto a foundation or onto the earth burial base type no. 690010.protection class IP 44 – protection class : d 80 x 900 mm

Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight 3,30 kg
Light output

2-seitig

Nominal voltage

230 V

Voltage type

AC

Suitable for number of lamps

1

With base plate

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Light type

Standleuchte

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Type of control gear

Not required

Number of poles

3

Type of wiring

Suitable for through wiring

Beam angle

Open beam/diffuse

Protection class

I

Degree of protection (IP)

IP44

Height

700 – 1000 mm

Housing material quality

Stainless steel 304 (V2A)

Height/depth

900 mm

Light sharing

Symmetric

Power factor

1

Light output

Direct/indirect

Diameter

200 mm

Max. system power

75 W

Type of luminaire

Bollard luminaire

Shape

Eckig

Style

Modern

Documents and files
Data sheet
Assembly instruction
PDF | 29 KB

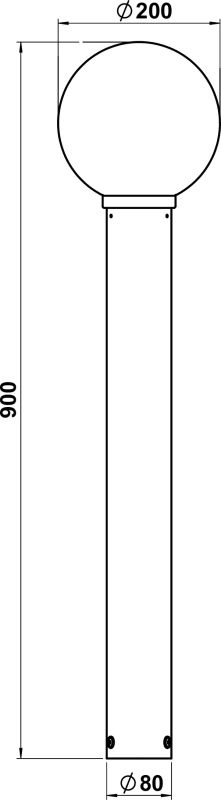

Dimensioned drawing
PDF | 19 KB
Light distribution curve - Eulumdat/LDT
LDT | 1 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210042 - G-42, bubble glass sphere, clear show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
