Article number 622271

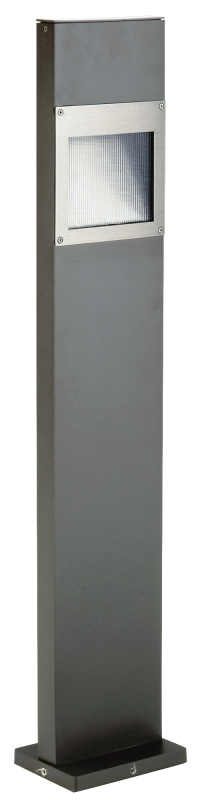

Bollard light

type ..2271

479,80

Specifications

Albert bollard light 622271 made of cast aluminium and stainless steel with ornamental safety glass. Equipped with electronic ballast for 1 x HIT-TC-CE 35 W, socket G 8,5.colour: bicolor – stainless steel/anthracite protection class IP 44 – protection class : 1000 x 180 x 40 mm

Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Material housing
Stainless steel
Colour housing
Anthracite
Lamp type
Metal halide lamp
Suitable for lamp power
35 W
Material cover
Glass transparent
Weight 6,50 kg
Exchangeable control gear

Yes

Height/depth

1000 mm

With base plate

Yes

Type of control gear

Electronic ballast

Width

180 mm

Length

40 mm

Type of wiring

Suitable for through wiring

Surface protection

Lacquered

With control gear

Yes

Nominal voltage

230 V

Power factor

1

Suitable for number of lamps

1

Highest energy efficiency class of the exchangeable lamp

A+

Max. system power

35 W

Degree of protection (IP)

IP54

Protection class

I

Light output

2-seitig

Light output

Direct/indirect

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Type of luminaire

Bollard luminaire

Lowest energy efficiency class of the exchangeable lamp

E

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Light type

Standleuchte

Voltage type

AC/DC

Height

700 – 1000 mm

Housing material quality

Stainless steel 304 (V2A)

Number of poles

3

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 35 KB

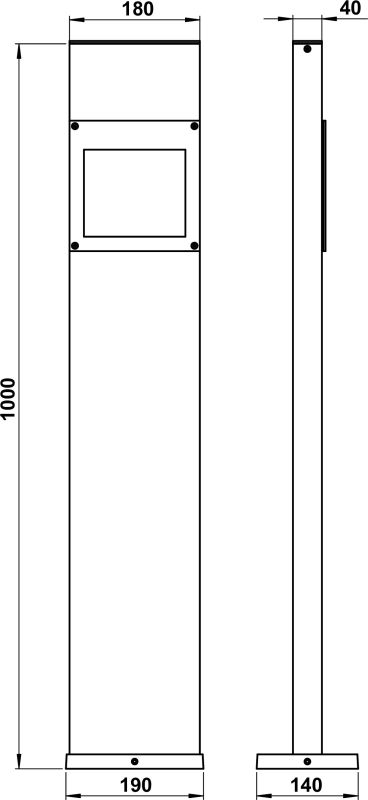

Dimensioned drawing
PDF | 24 KB
Light distribution curve - Eulumdat/LDT
LDT | 4 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90220382 - G 382, ESG glass show
Accessories
690011 - Earth mounting base type ..0011 show
