Data sheet


























Article number
Select a color, please

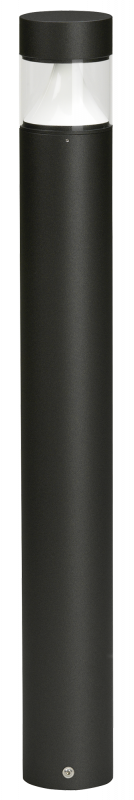

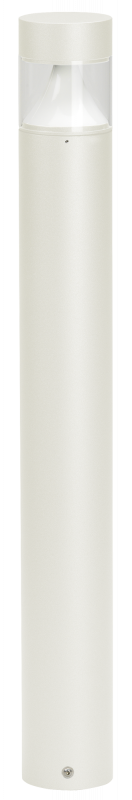

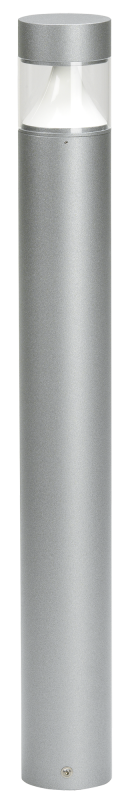

Bollard light, 360 degrees, indirect symmetrical
type no. 622295
Features
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
1000 lm
Colour temperature
3000 K
Material cover
Plastic, transparent
Weight | N/A |
---|---|
Type of luminaire | Bollard luminaire |
With base plate | Yes |
Suitable for number of lamps | 1 |
Type of wiring | Suitable for through wiring |
Degree of protection (IP) | IP54 |
Colour rendering index CRI | 80-89 |
Light type | Standleuchte |

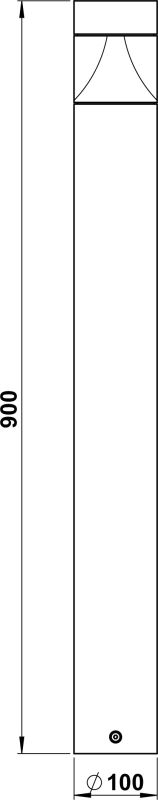

Height/depth | 900 mm |
Lowest energy efficiency class of the exchangeable lamp | E |
Surface protection | Lacquered |
Energy efficiency class of the provided exchangeable built-in lamp | E |
Voltage type | AC |
Type of control gear | Not required |
Highest energy efficiency class of the exchangeable lamp | A+ |
Rated life time L70/B50 at 25 °C | 50000 h |
Nominal voltage | 230 V |
Number of poles | 3 |
Impact strength | IK08 |
Beam angle | Open beam/diffuse |
Flickering value Pst LM | 0.5 |
Stroboscope effect value SVM | 0.6 |
Max. number of luminaires per miniature circuit breaker B16 | 20 |
Max. number of luminaires per miniature circuit breaker C16 | 30 |
Conductor cross section | 2.5 mm² |
Power factor | 0.9 |
Protection class | I |
Connection type | Screwed terminal |
Colour of light | White |
Height | 700 – 1000 mm |
Style | Modern |
Max. system power | 10 W |
Diameter | 100 mm |
Light sharing | Symmetric |
Light output | Indirect |
Shape | Eckig |
