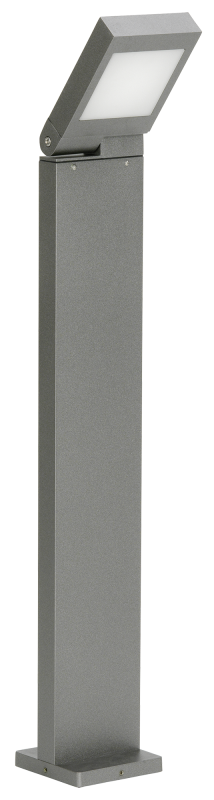

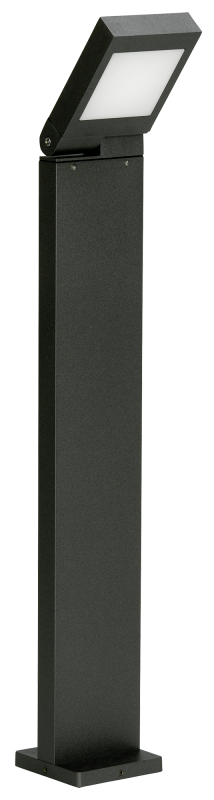

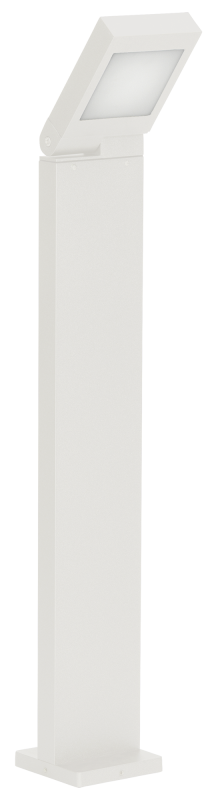

Bollard light

type no. 622296

625,90720,10

Clear
Features
AC / DC Product-Icon Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire can be operated with 230 V, 0/50-60 Hz.
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
14 W
Rated luminous flux according to IEC 62722-2-1
1400 lm
Colour temperature
3000 K
Material cover
Glass opal
Weight N/A
Light sharing

Symmetric

Protection class

I

With control gear

Yes

Nominal voltage

230 V

Suitable for number of lamps

1

With base plate

Yes

Surface protection

Lacquered

Connection type

Screwed terminal

Voltage type

AC/DC

Type of control gear

LED operating device voltage-controlled

Colour rendering index CRI

80-89

Max. system power

14 W

Type of wiring

Suitable for through wiring

Conductor cross section

2.5 mm²

Width

150 mm

Highest energy efficiency class of the exchangeable lamp

A+

Energy efficiency class of the provided exchangeable built-in lamp

E

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Power factor

0.9

Light type

Standleuchte

Height/depth

900 mm

Lowest energy efficiency class of the exchangeable lamp

E

Number of poles

3

Length

210 mm

Height

700 – 1000 mm

Exchangeable control gear

Yes

Degree of protection (IP)

IP54

Colour of light

White

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Beam angle adjustable

Continuously variable

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Type of luminaire

Bollard luminaire

Light output

2-seitig

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 95 KB

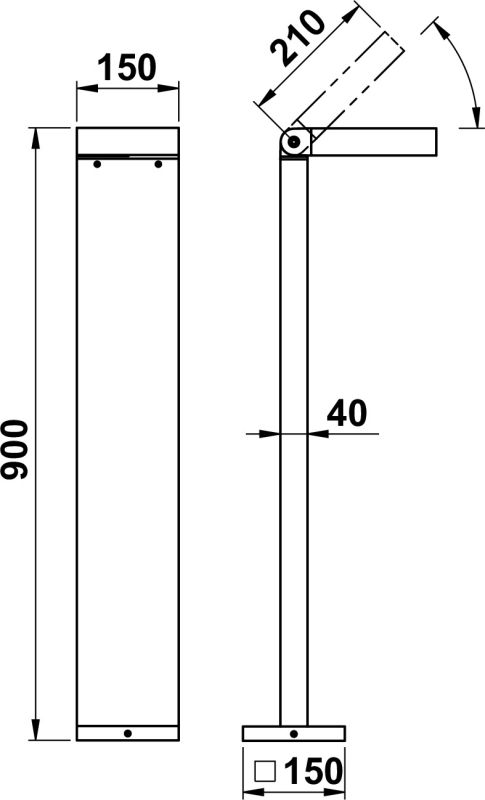

Dimensioned drawing
PDF | 104 KB
Light distribution curve - Eulumdat/LDT
LDT | 89 KB
Offertext
For: 622296
TXT | 193 B
Offertext
For: 662296
TXT | 188 B
Offertext
For: 682296
TXT | 188 B
Offertext
For: 692296
TXT | 187 B
Full catalog 21 / 22
PDF | 39 MB
Accessories
690010 - Earth mounting base type ..0010 show
