Article number 692317

Ground recessed spotlight

type ..2317

This product is no longer in our assortment.
You can find a successor of this product listed below.

Nicht lieferbar

Specifications

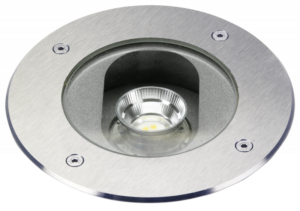

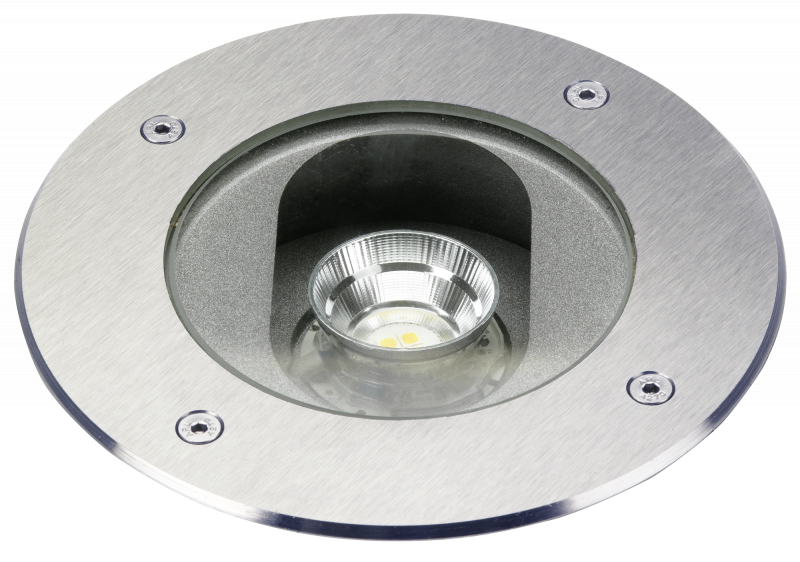

Albert-ground recessed spotlight 692317 – 30 degree swivel –
made of cast aluminium with round stainless steel cover, clear safety glass. Equipped for 1 x LED 8 Watt incl. converter, 800 lm. 3000K One blind and one cable gland each for mains connection cables d 6 – 12 IP 67 – protection class I. For pressure loads up to 1000 kg. Dimensions: d 180 x 130 Glass surface reaches a temperature of max. 35 degrees C.

Features
IP67 Product-Icon The luminaire has IP 67 protection.
The luminaire has IP 67 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Silver
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
8 W
Rated luminous flux according to IEC 62722-2-1
800 lm
Colour temperature
3000 K
Material cover
Glass transparent
Weight 2,80 kg
Outer diameter

180 mm

Beam angle

Medium beam 21-40°

Energy efficiency class of the provided exchangeable built-in lamp

E

Max. system power

9 W

No dim function

Yes

Adjustable

Yes

Light distributor

Reflector

Light sharing

Symmetric

Suitable for number of lamps

1

Height/depth

130 mm

Built-in height/depth

130 mm

Built-in diameter

130 mm

Protection class

I

Voltage type

AC

Nominal voltage

230 V

Type of control gear

LED operating device voltage-controlled

With control gear

Yes

Dimming phase cut-off

Yes

Impact strength

IK08

Type of wiring

Suitable for through wiring

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Colour of light

White

Height

< 700 mm

Exchangeable control gear

Yes

Load capacity

0 bis 2000 kg

Beam angle adjustable

Continuously variable

Max. surface temperature

35 °C

Colour rendering index CRI

80-89

Power factor

0.8

Highest energy efficiency class of the exchangeable lamp

A+

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP67

Max. load

1000 kg

Over rollable

Yes

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 259 KB

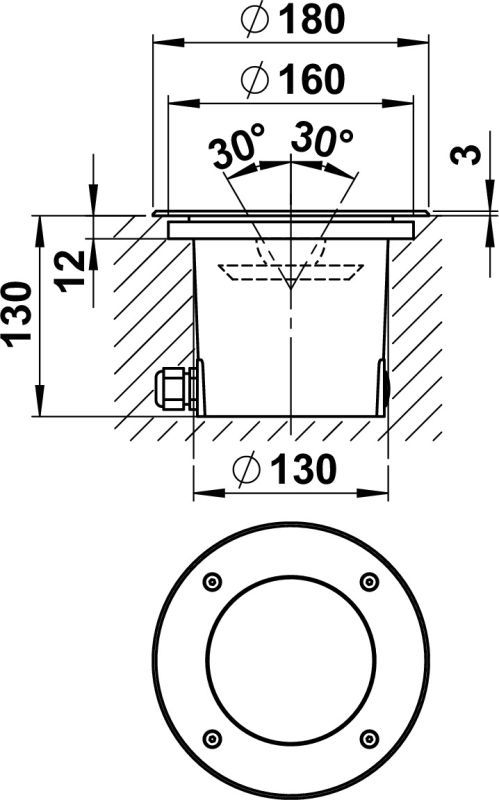

Dimensioned drawing
PDF | 72 KB
Light distribution curve - Eulumdat/LDT
LDT | 890 B
Full catalog 21 / 22
PDF | 39 MB
Successor
692326 - Ground recessed spotlight type ..2326 show
Spare parts
90220369 - G 369, single-pane safety glass show
