Data sheet
Article number
Select a color, please

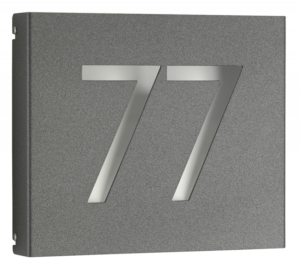

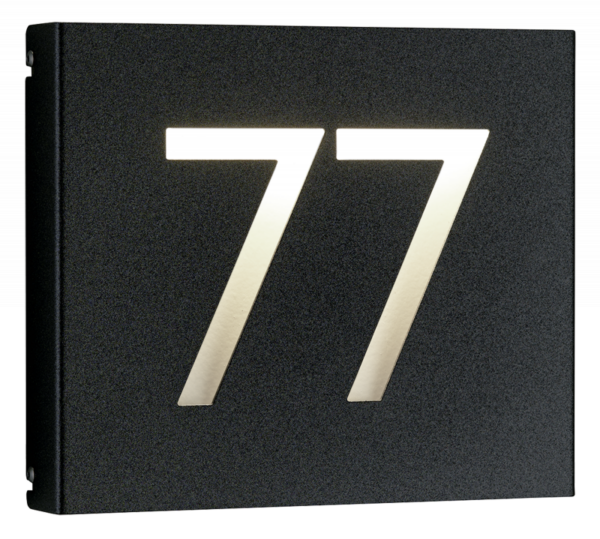

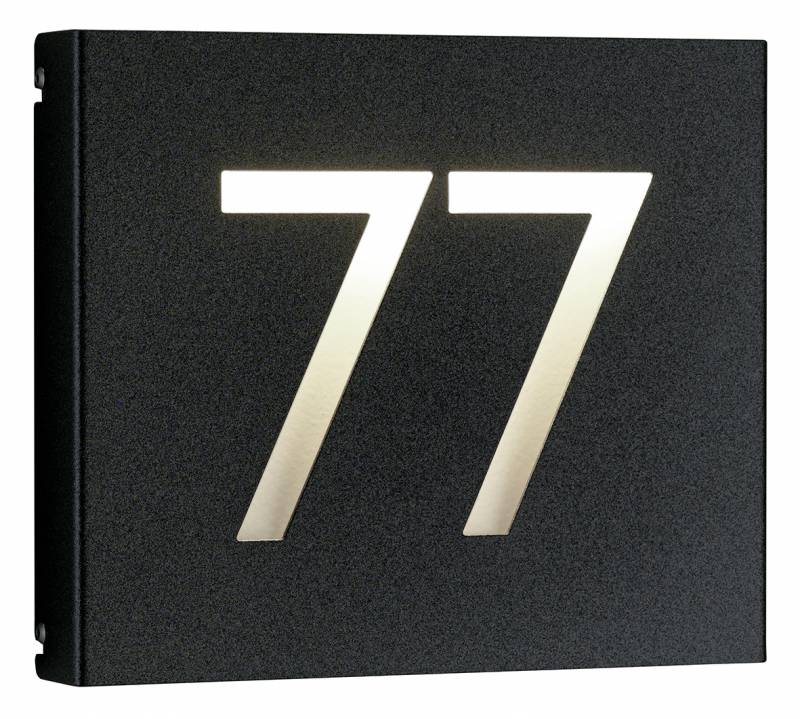

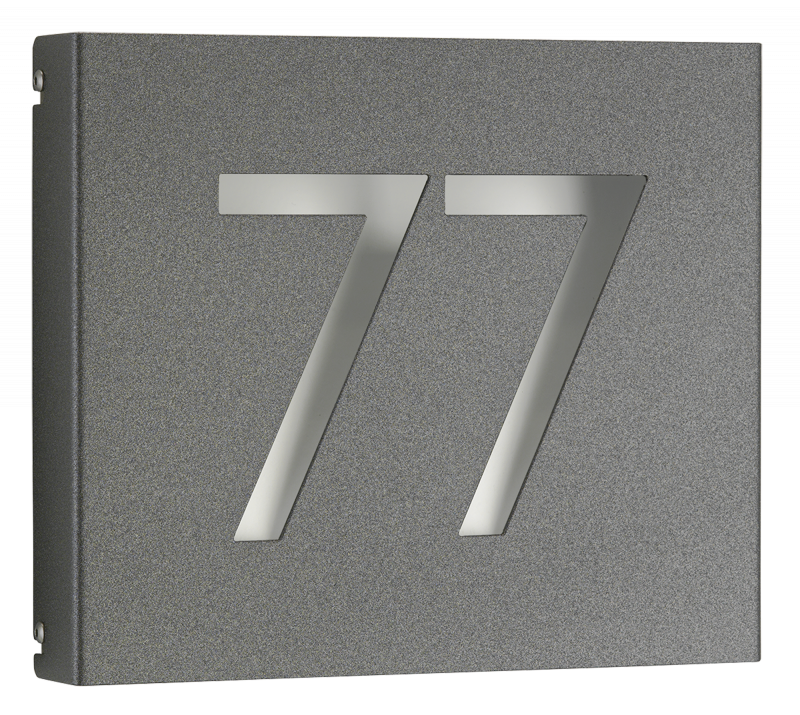

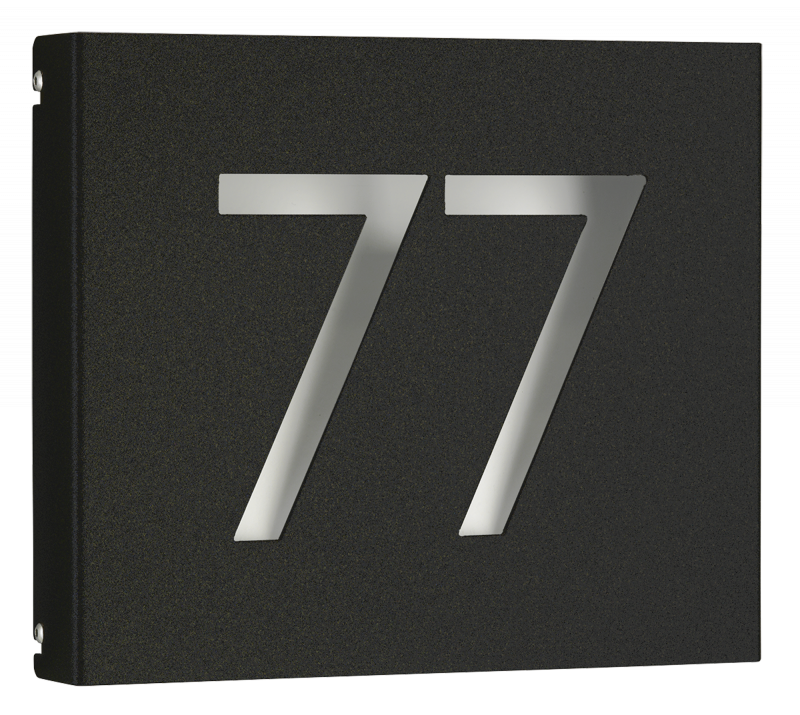

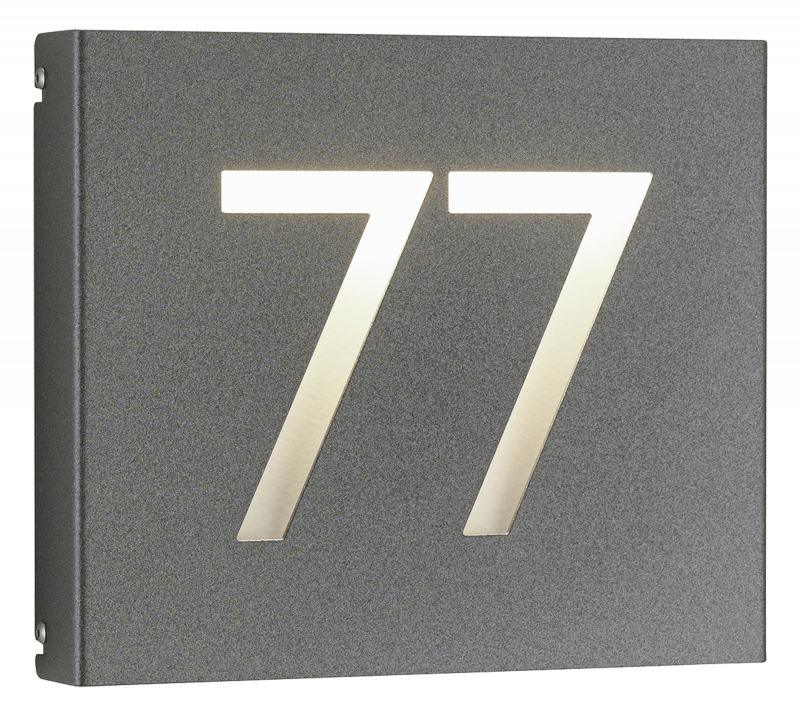

House number light
type ..6004
€280,00
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire with integrated twilight switch.
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Stainless steel
Colour housing
Anthracite, Black
With light sensor
Yes
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
2 W
Rated luminous flux according to IEC 62722-2-1
120 lm
Colour temperature
3000 K
Material cover
Without cover
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Suitable for surface mounting | Yes |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Voltage type | AC |
| Type of control gear | LED operating device voltage-controlled |
| Protection class | I |
| Beam angle | Open beam/diffuse |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Power factor | 0.9 |
| No dim function | Yes |
| Light output | Direct |
| Light sharing | Symmetric |
| Degree of protection (IP) | IP44 |
| Nominal voltage | 230 V |

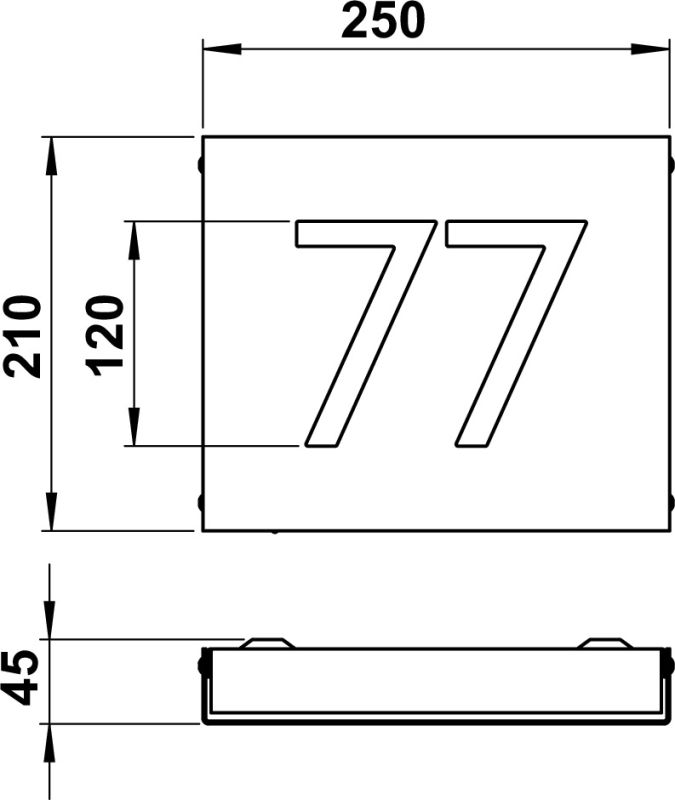

| Length | 40 mm |
| Width | 250 mm |
| Colour rendering index CRI | 80-89 |
| Type of wiring | Ending |
| Dimming depending on control gear | Yes |
| Max. system power | 2 W |
| Colour of light | White |
| Connection type | Screwed terminal |
| Conductor cross section | 2.5 mm² |
| Number of poles | 3 |
| Height/depth | 210 mm |
| Shape | Eckig |
| Mounting Type | Wand |
| Light output | 1-seitig |
| Height | < 700 mm |
| Style | Edelstahl, Modern |
| Surface protection housing | Untreated |
| Exchangeable control gear | Yes |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Flickering value Pst LM | 1 |
| Stroboscope effect value SVM | 0.4 |
| Photobiological safety according to EN 62471 | RG1 |
| Unified Glare Ratio (UGR) | 1 |
