Data sheet
Article number 696007
House number light
type ..6007
€310,60
Manufacturer's Suggested Retail Price excl. 19% VAT
Specifications

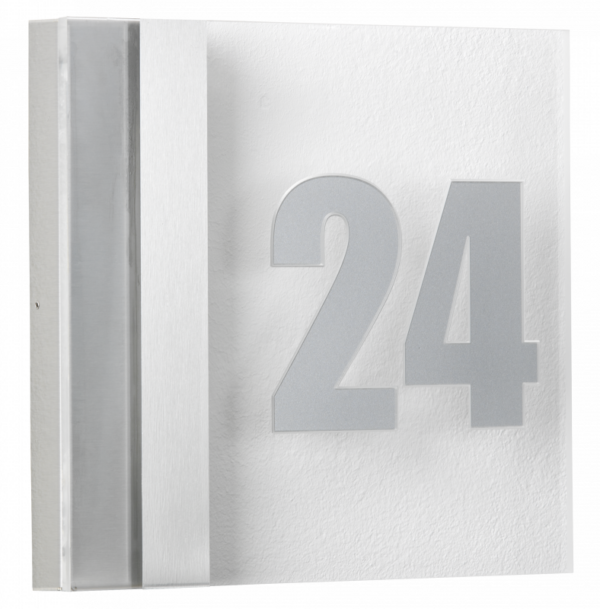

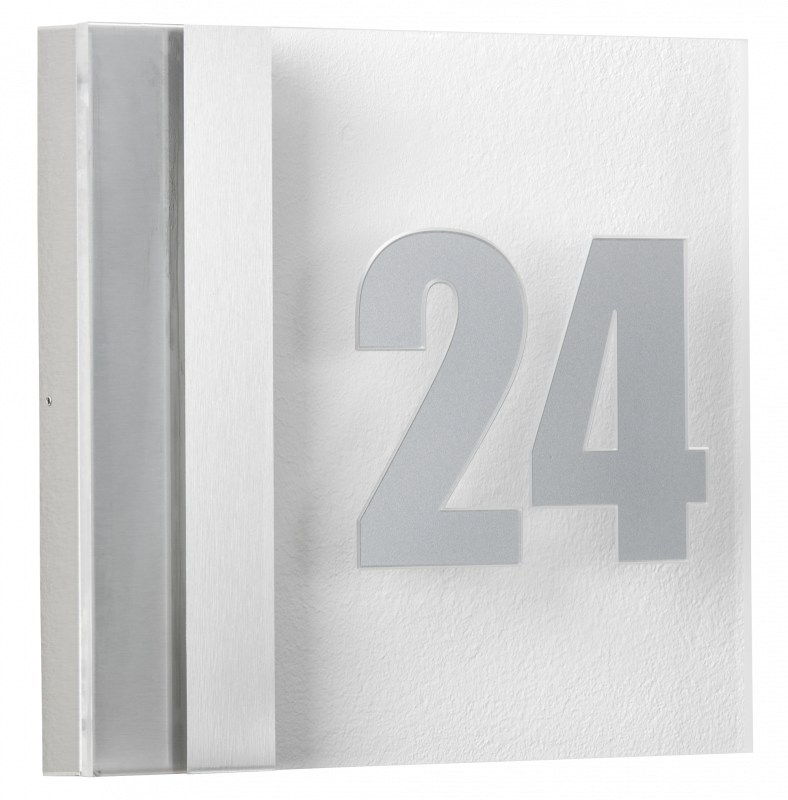

Albert house number light with twilight switch 696007

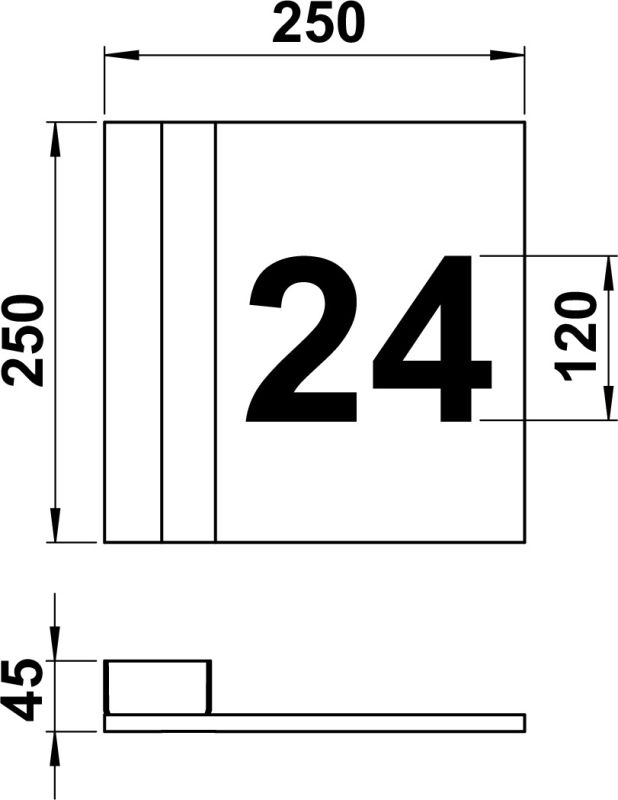

made of stainless steel with clear acrylic glass1 x LED 1,0W, light colour white 4000 IP 44 – protection class : 250 x 250 x 45 mm
Features
Luminaire with integrated twilight switch.
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Stainless steel
Colour housing
Stainless steel
With light sensor
Yes
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
1 W
Colour temperature
3000 K
Material cover
Glass opal
| Weight | 1,94 kg |
|---|---|
| Power factor | 0.9 |
| Suitable for number of lamps | 1 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Colour of light | White |
| Voltage type | AC |
| Type of control gear | LED operating device voltage-controlled |
| Protection class | I |
| With control gear | Yes |
| Nominal voltage | 230 V |
| Light sharing | Symmetric |
| Beam angle | Open beam/diffuse |
| Light output | Direct |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Degree of protection (IP) | IP44 |
| Suitable for surface mounting | Yes |
| Height | < 700 mm |
| Light output | 1-seitig |
| Photobiological safety according to EN 62471 | RG1 |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Max. system power | 1 W |
| Unified Glare Ratio (UGR) | 1 |
| No dim function | Yes |
| Height/depth | 250 mm |
| Surface protection housing | Lacquered |
| Exchangeable control gear | Yes |
| Length | 45 mm |
| Type of wiring | Ending |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Suitable for wall mounting | Yes |
| Dimming depending on control gear | Yes |
| Style | Edelstahl, Modern |
| Colour rendering index CRI | 80-89 |
| Width | 250 mm |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Flickering value Pst LM | 1 |
| Stroboscope effect value SVM | 0.4 |
| Connection type | Screwed terminal |
| Mounting Type | Wand |
| Shape | Eckig |
