Article number 690773

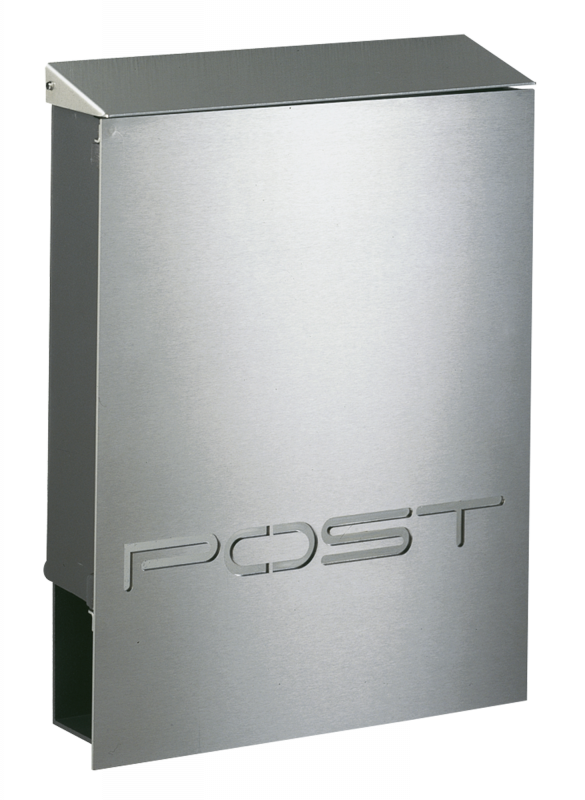

Mailbox stainless steel/anthracite

type ..0773

253,20

Specifications

Albert letterbox 690773 made of stainless steel and aluminium, with integrated newspaper roll, front flap made of stainless steel with mirrored lettering “Post “Body made of aluminium, painted black Letter insertion from above and letter removal from the front. Dimension: 430 x 325 x 90 mm

Colour
Stainless steel
Weight 5,30 kg
Insert

Above

Number of module positions

1

Material

Stainless steel

Total width

325 mm

Total height

430 mm

Overall depth

90 mm

Number of mail boxes

1

Box height

430 mm

Depth of case

90 mm

Volume of case

12.5775 l

Number of call buttons

0

Width throw-in

280 mm

Height throw-in

40 mm

Removal

Front side

With post retaining bracket

Yes

With protruding rain angle

Yes

Width of case

325 mm

Mounting Type

Surface mounted (plaster)

Shape

Eckig

Documents and files
Data sheet

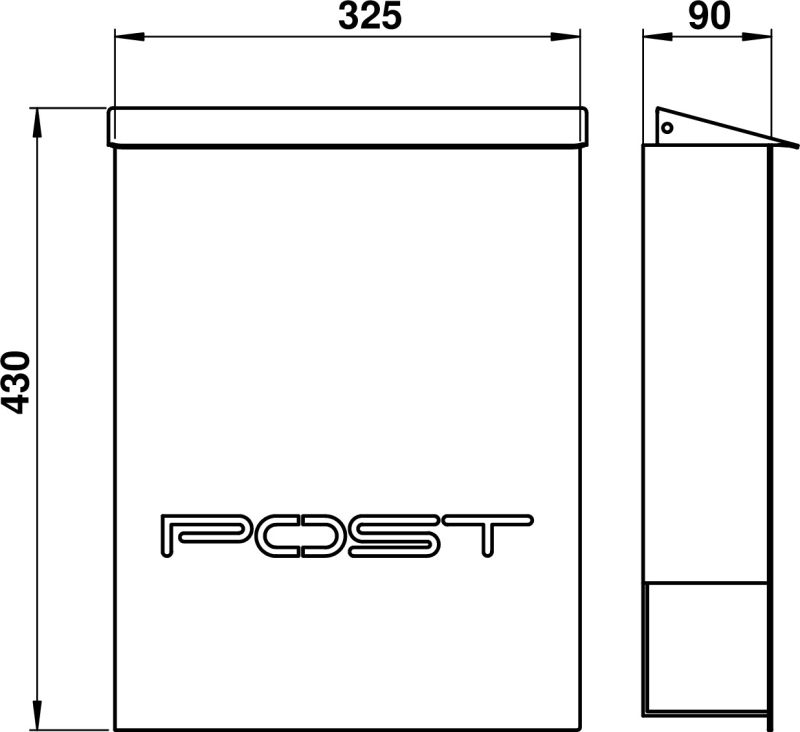

Dimensioned drawing
PDF | 28 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
91270205 - G 205, plexiglass, clear show
Accessories
690768 - Mailbox stand type ..0768 with holes for newspaper holders show
690769 - Mailbox stand type ..0769 show
