Data sheet
Article number
Select a color, please
Path light
type ..4141
€445,90 – €446,20
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium

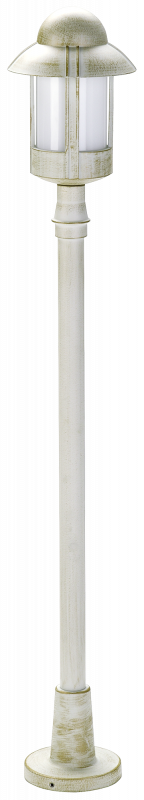

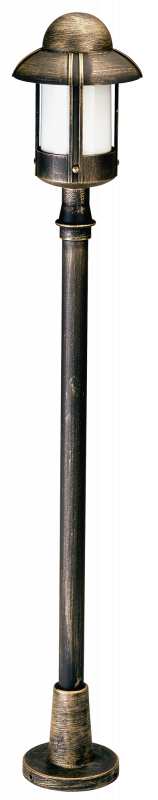

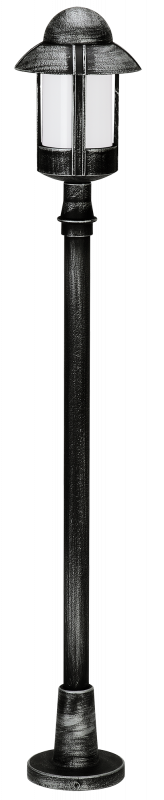

Colour housing
Black-Silver, Brown-Brass, White-Gold
Lamp type
Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
| Weight | N/A |
|---|---|
| Type of luminaire | Bollard luminaire |
| Suitable for number of lamps | 1 |
| Surface protection | Lacquered |
| Type of wiring | Suitable for through wiring |
| Voltage type | AC |
| Number of poles | 3 |
| Nominal voltage | 230 V |
| Type of control gear | Not required |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| With base plate | Yes |
| Power factor | 1 |
| Connection type | Screwed terminal |
| Conductor cross section | 2.5 mm² |

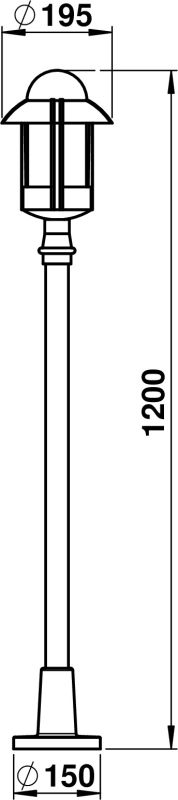

| Diameter | 195 mm |
| Max. system power | 75 W |
| Protection class | I |
| Degree of protection (IP) | IP44 |
| Height | 1001 – 1700 mm |
| Width | 150 mm |
| Height/depth | 1200 mm |
| Light sharing | Symmetric |
| Light output | Direct/indirect |
| Beam angle | Open beam/diffuse |
| Light output | 2-seitig |
| Style | Landhaus |
| Shape | Eckig |
