Article number Select a color, please

Path light

type ..4154

284,50327,10

Clear
Features
IP54 Product-Icon Luminaire has IP 54 protection.
Luminaire has IP 54 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
Incandescent lamp
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Plastic, transparent
Weight N/A
Type of luminaire

Bollard luminaire

Suitable for number of lamps

1

Surface protection

Lacquered

Voltage type

AC

Nominal voltage

230 V

Type of control gear

Not required

With base plate

Yes

Lowest energy efficiency class of the exchangeable lamp

E

Diameter

200 mm

Degree of protection (IP)

IP54

Protection class

I

Max. system power

75 W

Power factor

1

Light sharing

Symmetric

Type of wiring

Suitable for through wiring

Number of poles

3

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Shape

Eckig

Height

1001 – 1700 mm

Style

Edelstahl, Modern

Height/depth

1175 mm

Light output

Direct/indirect

Beam angle

Open beam/diffuse

Highest energy efficiency class of the exchangeable lamp

A++

Light output

2-seitig

Documents and files
Data sheet
Assembly instruction
PDF | 97 KB

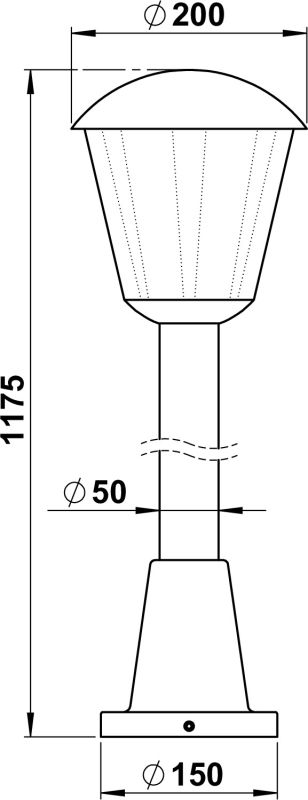

Dimensioned drawing
PDF | 94 KB
Light distribution curve - Eulumdat/LDT
LDT | 879 B
Offertext
For: 624154
TXT | 287 B
Offertext
For: 664154
TXT | 302 B
Offertext
For: 684154
TXT | 305 B
Offertext
For: 694154
TXT | 280 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
10260141 - G 141, lamp glasses L-750 show
Accessories
690010 - Earth mounting base type ..0010 show
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
90750102 - LED Retrofit Filament show
