Article number 681015

Pole attachment 2-fold

type ..1015

223,60

Specifications

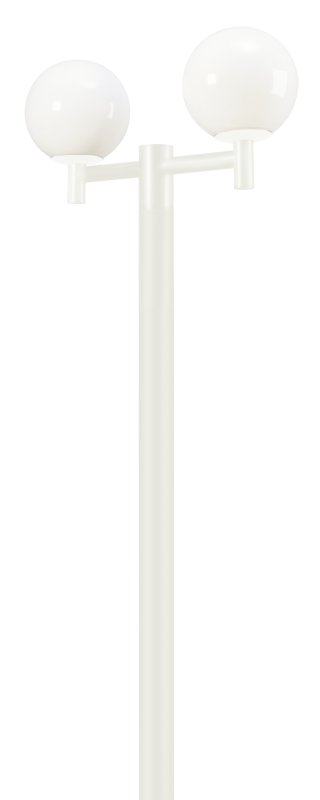

Albert pole attachment 681015 2-fold, 180 degree offset
for 2 post-top luminaires with post spigot 60 galvanised steel for post spigot diameter 60 : white

Top end diameter, pole side
60 mm
Weight 4,90 kg
Type of accessory/spare part

Top-piece

Accessory

Yes

Material

Aluminium

Surface protection

Lacquered

Number of arms of the top-piece

2

Top end diameter, luminaire side

60 mm

Suitable for pipe diameter

60 mm

Width

650 mm

Height

20 mm

Depth

20 mm

Insert depth

10 mm

Weight

5 kg

Shape

Eckig

Style

Modern

Recommendations

This product is suitable for light poles with a pole top end diameter of 60mm.

Documents and files
Data sheet
Assembly instruction
PDF | 837 KB

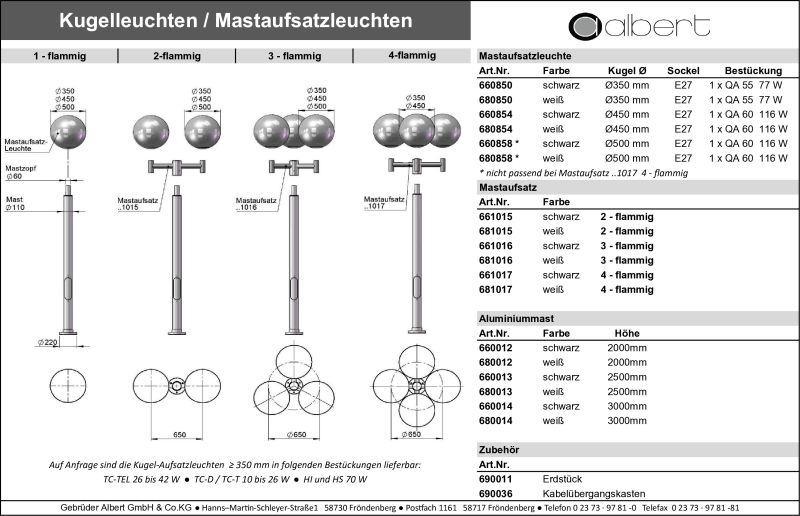

Dimensioned drawing
PDF | 837 KB
Full catalog 21 / 22
PDF | 39 MB
