Article number 661016

Pole attachment 3-fold

type ..1016

301,50

Specifications

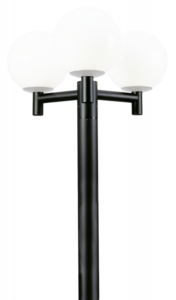

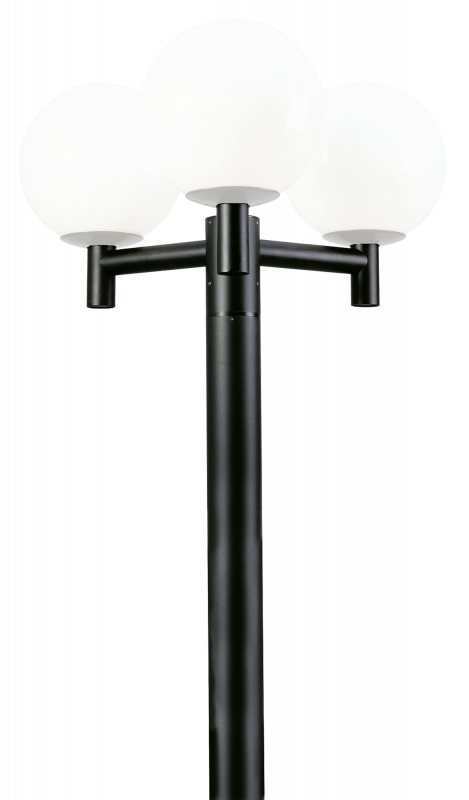

Albert post-top luminaire 661016 3-fold, 120 degree offset for 2 post-top luminaires with post spigot 60 galvanised steel for post spigot diameter 60 : black

Top end diameter, pole side
60 mm
Weight 7,00 kg
Type of accessory/spare part

Top-piece

Accessory

Yes

Material

Aluminium

Surface protection

Lacquered

Number of arms of the top-piece

3

Top end diameter, luminaire side

60 mm

Suitable for pipe diameter

60 mm

Width

650 mm

Height

20 mm

Depth

400 mm

Insert depth

10 mm

Weight

7 kg

Shape

Eckig

Style

Modern

Recommendations

This product is suitable for light poles with a pole top end diameter of 60mm.

Documents and files
Data sheet
Assembly instruction
PDF | 837 KB

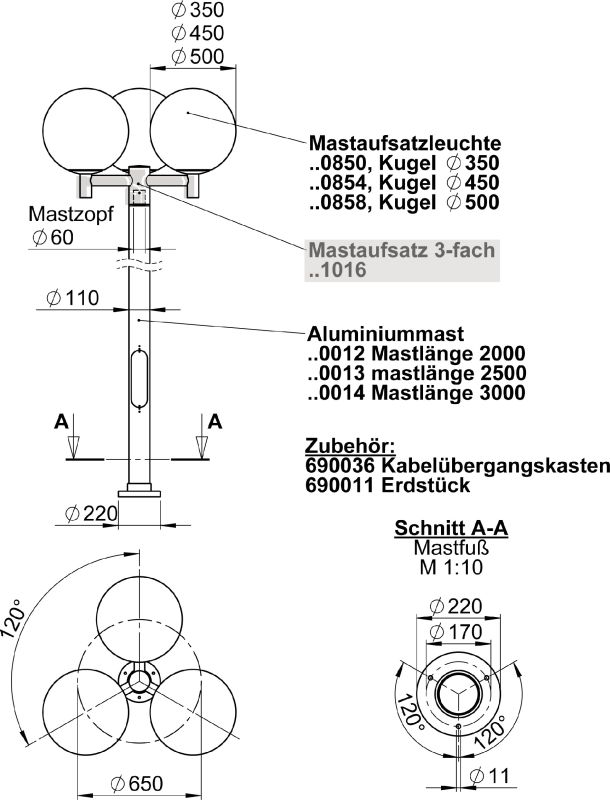

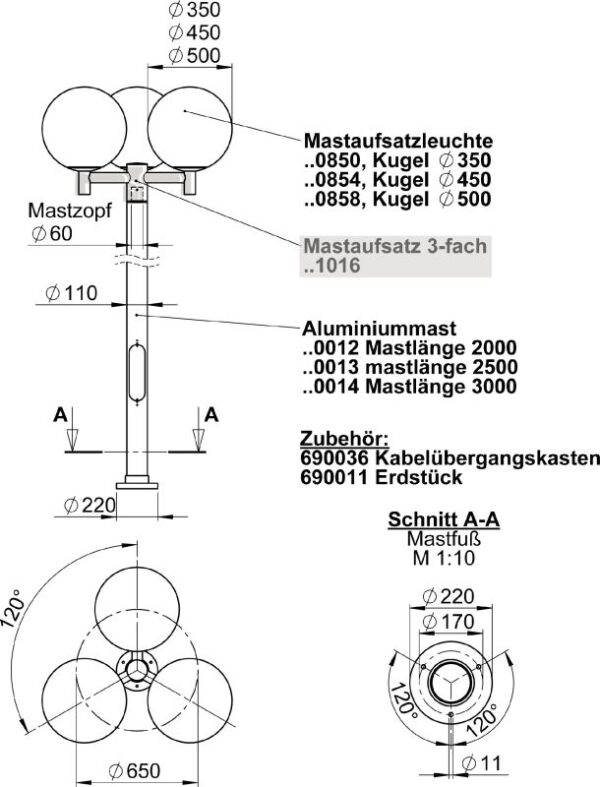

Dimensioned drawing
PDF | 577 KB
Full catalog 21 / 22
PDF | 39 MB
