Article number Select a color, please

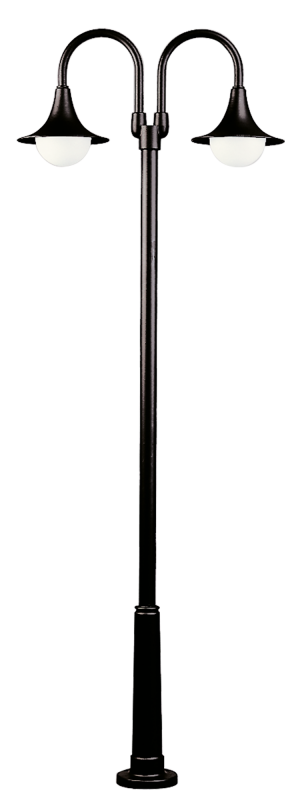

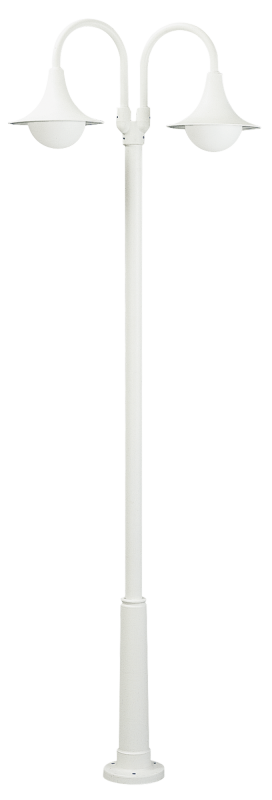

Post lamp 2-light

type ..2047

913,10

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
1 - 150 W
Material cover
Glass opal
Pole included
Ja
Weight N/A
Mounting Type

Post top

Nominal voltage

230 V

Voltage type

AC

Suitable for number of lamps

2

Height/depth

2200 mm

Type of wiring

Suitable for through wiring

Surface protection

Lacquered

Dimming phase cut-off

Yes

Dimming phase cut-on

Yes

Type of control gear

Not required

Connection type

Screwed terminal

No dim function

Yes

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Degree of protection (IP)

IP44

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Light type

Standleuchte

Cable length

0 m

Height

> 1700 mm

Style

Edelstahl, Modern

Max. system power

150 W

Conductor cross section

2.5 mm²

Number of poles

3

Width

270 mm

Length

860 mm

Power factor

1

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 71 KB

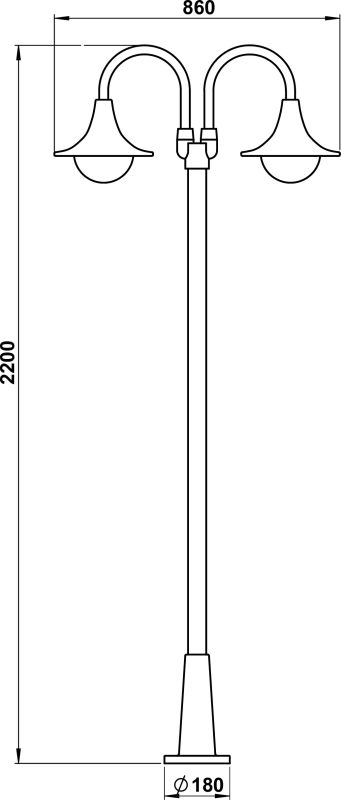

Dimensioned drawing
PDF | 29 KB
Offertext
For: 662047
TXT | 315 B
Offertext
For: 682047
TXT | 310 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210147 - G 147, glass opal matt, d = 220 mm show
Accessories
690011 - Earth mounting base type ..0011 show
90750100 - LED Retrofit Classic show
