Data sheet

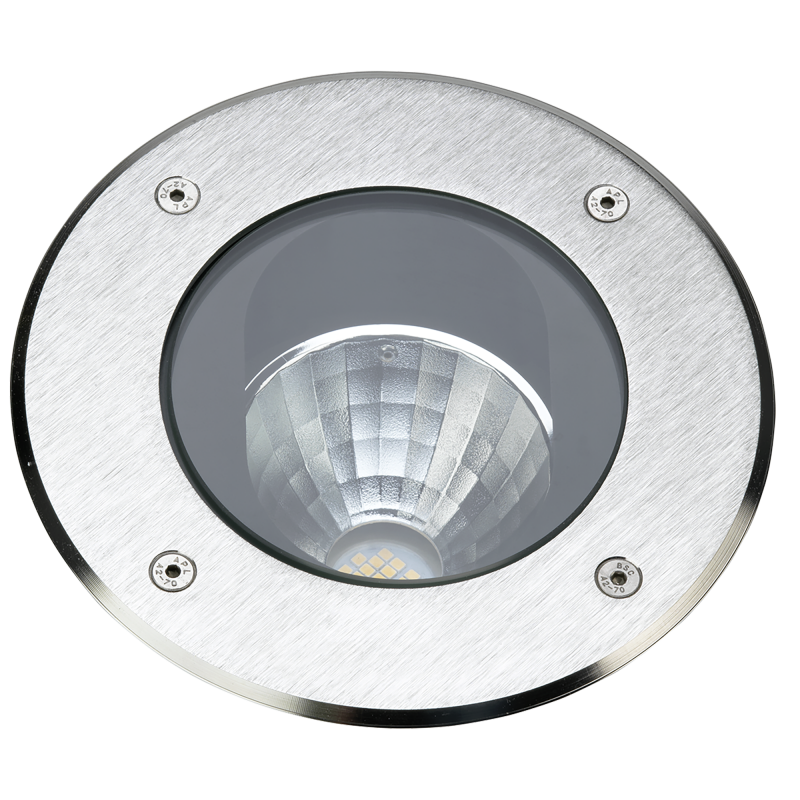

Ground recessed spotlight Silver Product Image Article 692326

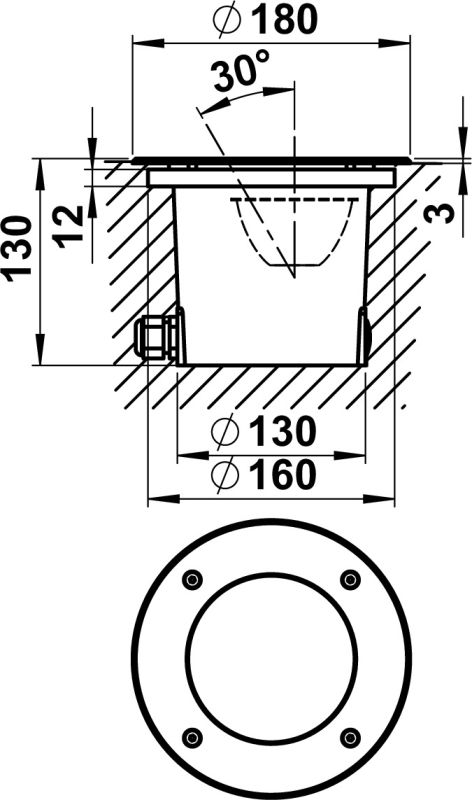

Ground recessed spotlight Silver Dimensioned drawing Article 692326
Ground recessed spotlight Silver Product Image Article 692326
Ground recessed spotlight Silver Dimensioned drawing Article 692326
Article number 692326

Ground recessed spotlight

type ..2326

€355,00

Manufacturer's Suggested Retail Price excl. 19% VAT

Find Retailer
Description

Albert-ground recessed spotlight 692326 – 30 degree swivel –
made of cast aluminium with round stainless steel cover, clear safety glass. Equipped for 1 x LED 10 Watt incl. converter, 900 lm. 3000K One blind and one cable gland each for mains connection cables d 6 – 12 IP 67 – protection class I. For pressure loads up to 1000 kg. Dimensions: d 180 x 130 Glass surface reaches a temperature of max. 35 degrees C.

Features
IP67 Product-Icon The luminaire has IP 67 protection.
The luminaire has IP 67 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Silver
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction
download PDF 189.55 KB
Dimensioned drawing
download PDF 124.09 KB
Light distribution curve - Eulumdat/LDT
download LDT 891 B
Full catalog 21 / 22
download PDF 38.74 MB

Additional information

Weight 2,80 kg
Colour temperature

3000 K
Adjustable

Yes
With control gear

Yes
Exchangeable control gear

Yes
Dimming phase cut-off

Yes
With light source

Yes
Degree of protection (IP)

IP67
Light distributor

Reflector
Light sharing

Symmetric
Beam angle

Medium beam 21-40°
Energy efficiency class of the provided exchangeable built-in lamp

E
Highest energy efficiency class of the exchangeable lamp

A+
Lowest energy efficiency class of the exchangeable lamp

E
Suitable for number of lamps

1
Material housing

Aluminium
Colour housing

Silver
Material cover

Glass transparent
Voltage type

AC
Nominal voltage

230 V
Type of control gear

LED operating device voltage-controlled
No dim function

Yes
Connection type

Screwed terminal
Number of poles

3
Beam angle adjustable

Continuously variable
Height/depth

130 mm
Outer diameter

180 mm
Protection class

I
Impact strength

IK08
Built-in height/depth

130 mm
Suitable for lamp power

10 W
Type of wiring

Suitable for through wiring
Lamp type

LED exchangeable
Over rollable

Yes
Built-in diameter

130 mm
Conductor cross section

2.5 mm²
Load capacity

0 bis 2000 kg
Max. load

1000 kg
Max. system power

12 W
Rated luminous flux according to IEC 62722-2-1

900 lm
Colour of light

White
Height

< 700 mm
Colour rendering index CRI

80-89
Power factor

0.8
Max. surface temperature

35 °C
Shape

Eckig
