Data sheet
Article number
Select a color, please
Bollard luminaire, 360 degrees, symmetrical
type ..3074
€581,70 – €669,20
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
22 W
Rated luminous flux according to IEC 62722-2-1
2500 lm
Colour temperature
3000 K
Material cover
Plastic, opal
| Weight | N/A |
|---|---|
| Type of luminaire | Bollard luminaire |
| With base plate | Yes |
| Suitable for number of lamps | 1 |
| Surface protection | Lacquered |
| Voltage type | AC |
| Nominal voltage | 230 V |
| Type of control gear | Not required |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A+ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Degree of protection (IP) | IP54 |
| Impact strength | IK08 |
| Protection class | I |
| Max. system power | 22 W |
| Light sharing | Symmetric |
| Light output | Direct/indirect |
| Beam angle | Open beam/diffuse |
| Colour of light | White |
| Colour rendering index CRI | 80-89 |
| Power factor | 0.8 |
| Flickering value Pst LM | 0.5 |
| Stroboscope effect value SVM | 0.6 |

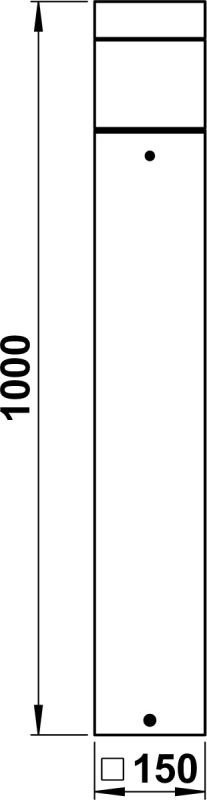

| Width | 150 mm |
| Height/depth | 1000 mm |
| Length | 150 mm |
| Type of wiring | Suitable for through wiring |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Connection type | Screwed terminal |
| Shape | Eckig |
| Light type | Standleuchte |
| Light output | 2-seitig |
| Height | 700 – 1000 mm |
