Data sheet
Article number
Select a color, please

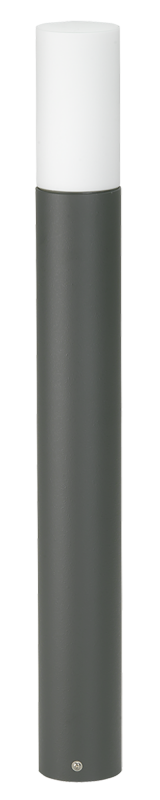

Bollard light
type ..3077
€265,00 – €304,70
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 54 protection.
The light source is replaceable.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
| Weight | N/A |
|---|---|
| Type of luminaire | Bollard luminaire |
| With base plate | Yes |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Degree of protection (IP) | IP54 |
| Suitable for number of lamps | 1 |
| Surface protection | Lacquered |
| Voltage type | AC |
| Nominal voltage | 230 V |
| Type of control gear | Not required |
| Protection class | I |
| Beam angle | Open beam/diffuse |
| Shape | Eckig |
| Light type | Standleuchte |
| Light output | 2-seitig |
| Max. system power | 75 W |
| Light sharing | Symmetric |
| Light output | Direct/indirect |
| Type of wiring | Suitable for through wiring |
| Power factor | 1 |

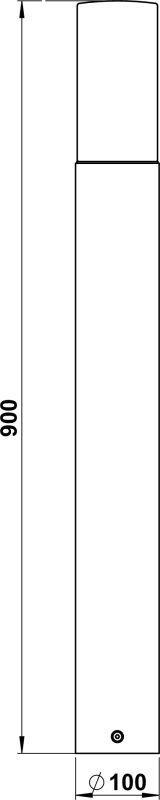

| Height/depth | 900 mm |
| Diameter | 100 mm |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Height | 700 – 1000 mm |
| Style | Modern |
Documents and files
Data sheet
