Data sheet
Article number
Select a color, please

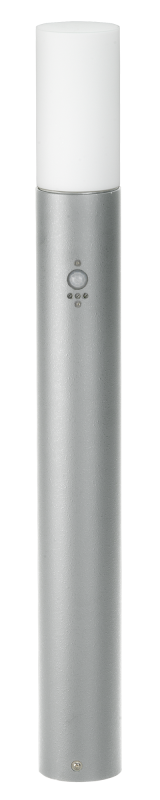

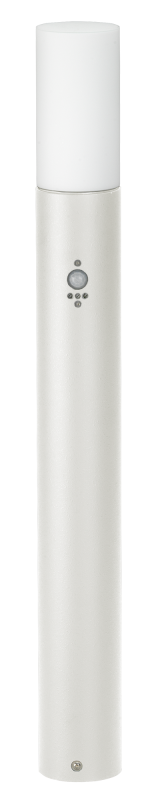

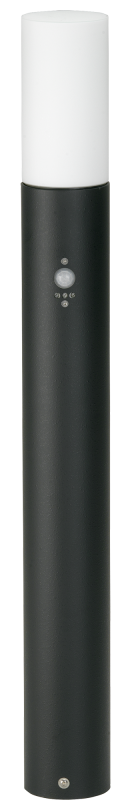

Bollard light
type ..3078
Features
Luminaire with integrated motion detector.
Luminaire with integrated twilight switch.
Luminaire has IP 54 protection.
The light source is replaceable.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
With movement sensor
Yes
With light sensor
Yes
Lamp type
LED exchangeable
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
| Weight | N/A |
|---|---|
| Type of luminaire | Bollard luminaire |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Surface protection | Lacquered |
| Protection class | I |
| With base plate | Yes |
| Voltage type | AC |
| Nominal voltage | 230 V |
| Type of control gear | Not required |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Degree of protection (IP) | IP54 |
| Suitable for number of lamps | 1 |
| Coverage | 90 ° |
| Max. system power | 75 W |
| Height/depth | 900 mm |
| Diameter | 100 mm, 104 mm |
| Type of wiring | Suitable for through wiring |
| Conductor cross section | 2.5 mm² |
| Number of poles | 3 |
| Connection type | Screwed terminal |
| Shape | Eckig |
| Light type | Standleuchte |
| Light output | 2-seitig |
| Height | 700 – 1000 mm |
| Light sharing | Symmetric |
| Light output | Direct/indirect |
| Beam angle | Open beam/diffuse |
| Power factor | 1 |
| Style | Modern |
