Article number 692200

Socket column stainless steel/silver

type ..2200

178,00

Specifications

Albert socket column 2-fold No.: 692200
made of stainless steel, with 2 protective contact sockets16 A / 250 Volt, with connection terminals 3 x 2.5 qmm for mains connection, ready for connection with mounting plate made of cast aluminium for screwing onto a foundation. Protection class IP 44 – Protection class : stainless steel Dimensions: 100 mm x 300 mm x 50 mm

Colour
Stainless steel
Weight 1,10 kg
Number of socket outlets

2

Number of installation boxes

0

Material

Metal

Material quality

Stainless steel

Surface protection

Untreated

Surface finishing

Matt

Width

70 mm

Height

300 mm

Depth

50 mm

Suitable for degree of protection (IP)

IP44

Assembly

Bestückt

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 27 KB

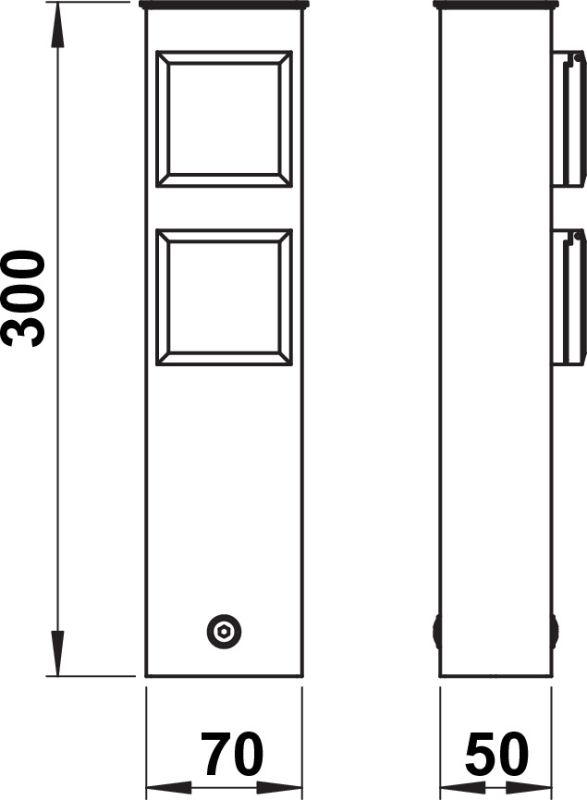

Dimensioned drawing
PDF | 172 KB
Full catalog 21 / 22
PDF | 39 MB
