Data sheet
Article number
Select a color, please

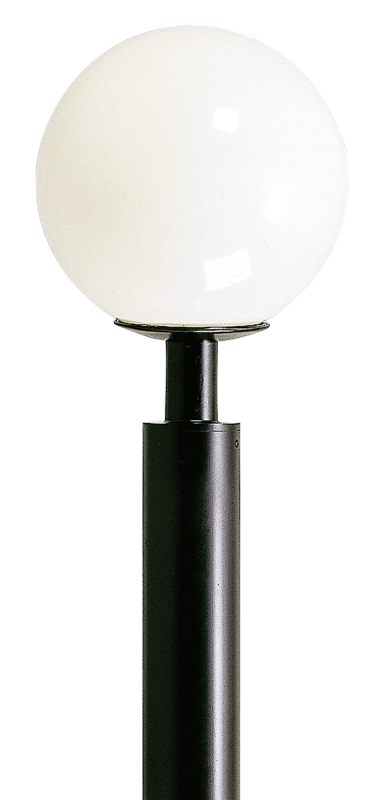

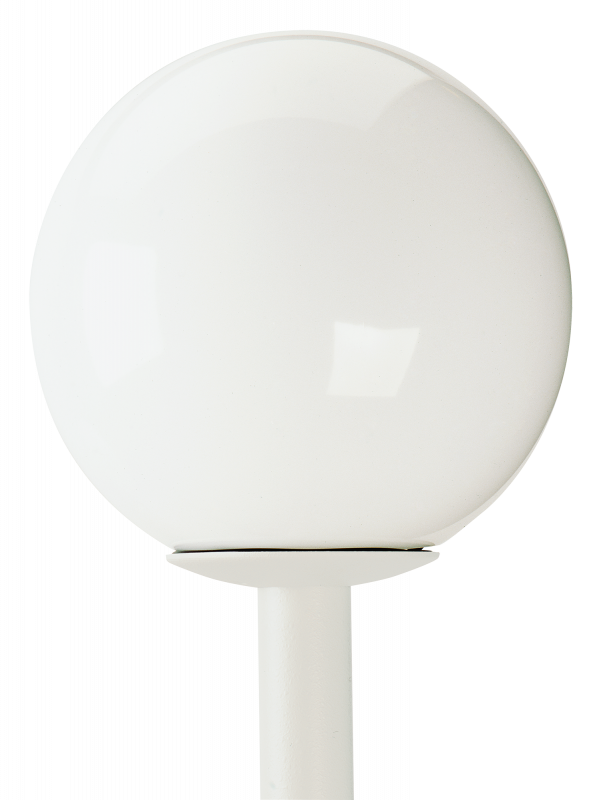

Spherical top light
type ..0850
€232,80 – €235,00
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black, White
Lamp type
HV halogen lamp
Lamp holder
E27
Suitable for lamp power
1 - 100 W
Material cover
Plastic, opal
Suitable for spigot size
60 mm
| Weight | N/A |
|---|---|
| Mounting Type | Post top |
| Max. system power | 100 W |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Suitable for number of lamps | 1 |

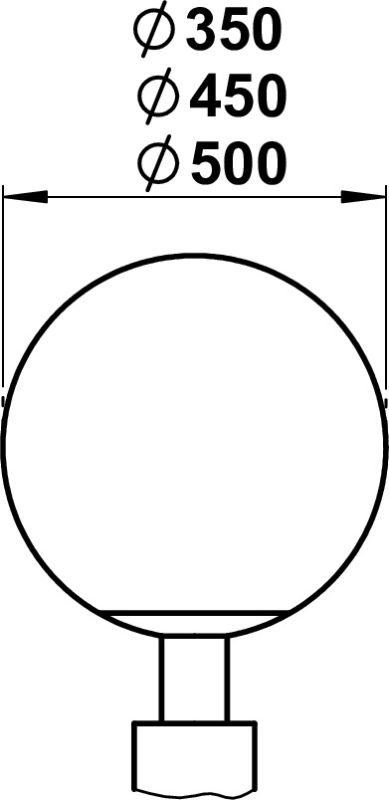

| Diameter | 350 mm |
| Conductor cross section | 2.5 mm² |
| Type of control gear | Not required |
| Nominal voltage | 230 V |
| Surface protection | Lacquered |
| Voltage type | AC |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Degree of protection (IP) | IP44 |
| No dim function | Yes |
| Protection class | I |
| Height | < 700 mm |
| Cable length | 0 m |
| Shape | Eckig |
| Light type | Mastaufsatzleuchte |
| Power factor | 1 |
| Type of wiring | Suitable for through wiring |
| Height/depth | 350 mm |
| Connection type | Screwed terminal |
| Number of poles | 3 |
| Style | Modern |
Recommendations
This product is suitable for light poles with a pole top end diameter of 60mm.
Documents and files
Spare parts
| 90260074 - G 74, sphere, opal, d = 350 mm PE | show |
Accessories
|
661015 - Pole attachment 2-fold type ..1015
Für: 660850
|
show |
|
661016 - Pole attachment 3-fold type ..1016
Für: 660850
|
show |
|
661017 - Pole attachment 4-fold type ..1017
Für: 660850
|
show |
|
681015 - Pole attachment 2-fold type ..1015
Für: 680850
|
show |
|
681016 - Pole attachment 3-fold type ..1016
Für: 680850
|
show |
|
681017 - Pole attachment 4-fold type ..1017
Für: 680850
|
show |
| 690012 - Aluminium mast type ..0012 | show |
| 690013 - Aluminium mast type ..0013 | show |
|
690014 - Aluminium mast type ..0014
Für: 680850
|
show |
| 90750100 - LED Retrofit Classic | show |
