Article number 690019

Steel pole, 3500 mm, spigot 76

type ..0019

1.311,30

Specifications

Albert steel pole 690019
hot-dip galvanised and unpainted, conical. For post-top luminaires and 3,500 mm above floor level, with ground piece 700 76 Door to accommodate a cable transition box 690036

Top end diameter
76 mm
Weight 25,60 kg
Model

Cylindrical

Conical tapering

Yes

Diameter at base

124 mm

Wall thickness

3 mm

Material

Steel

Surface protection

Galvanized

Light centre height

3.5 m

Total length

4.2 m

Shape

Eckig

Documents and files
Data sheet

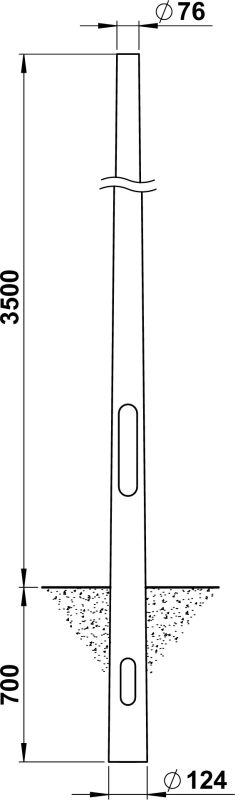

Dimensioned drawing
PDF | 17 KB
Full catalog 21 / 22
PDF | 39 MB
Accessories
690036 - KÜK Type No. 690036 show
