Article number 690023

Steel pole, 3500 mm, spigot 76

type ..0023

1.130,00

Specifications

Albert steel pole 690023
hot-dip galvanized and unpainted, cylindrically stepped. For post-top luminaires and Vario spotlights, post height 3,500 mm above ground, with ground piece 600 mm, post spigot diameter 76 mm with door to accommodate a cable transition box 690036

Top end diameter
76 mm
Weight 22,60 kg
Model

Cylindrical

Stepped shape

Yes

Diameter at base

114 mm

Wall thickness

3 mm

Material

Steel

Surface protection

Galvanized

Light centre height

3.5 m

Total length

4.2 m

Shape

Eckig

Documents and files
Data sheet

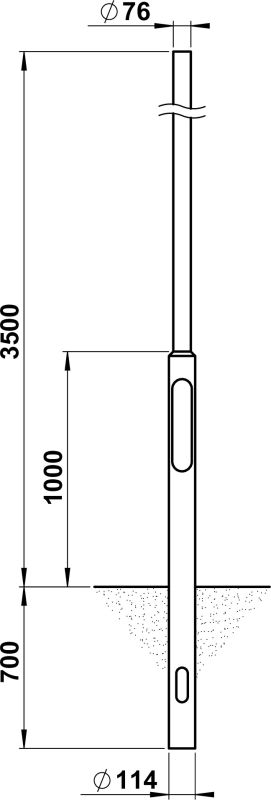

Dimensioned drawing
PDF | 15 KB
Full catalog 21 / 22
PDF | 39 MB
Accessories
690036 - KÜK Type No. 690036 show
