Article number 690065

Steel pole, 8000 mm, spigot 76

type ..0065

2.121,40

Specifications

Albert steel pole 690065 hot-dip galvanized and unpainted, cylindrical stepped, for pole-top luminaires and 8,000 mm above ground, with ground piece 1,200 76 door to accommodate a cable junction box 690036

Top end diameter
76 mm
Weight 77,10 kg
Model

Cylindrical

Stepped shape

Yes

Diameter at base

114 mm

Wall thickness

3 mm

Material

Steel

Surface protection

Galvanized

Light centre height

8 m

Total length

9 m

Shape

Eckig

Documents and files
Data sheet

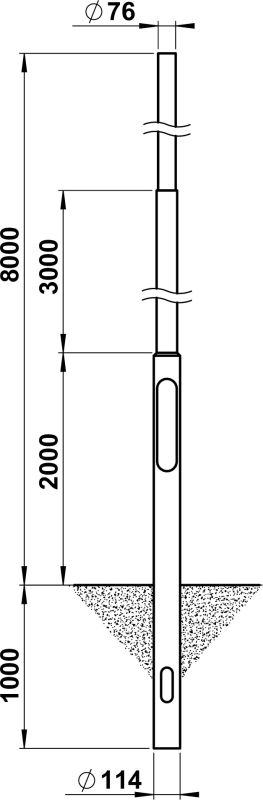

Dimensioned drawing
PDF | 36 KB
Full catalog 21 / 22
PDF | 39 MB
Accessories
690036 - KÜK Type No. 690036 show
