Article number 690070

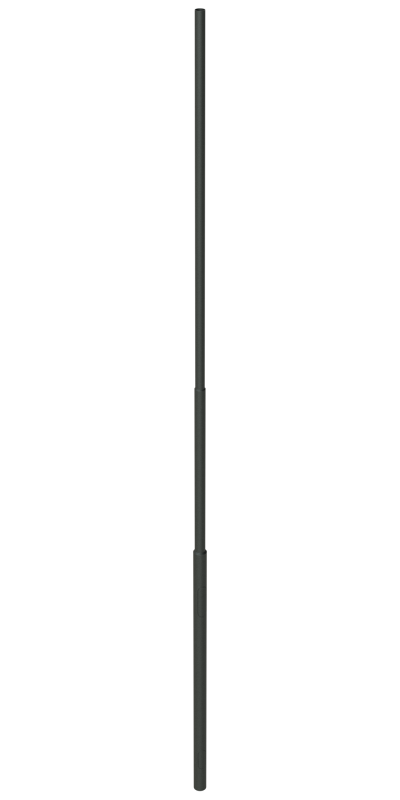

Steel pole, 7000 mm, spigot 76

type ..0070

2.729,20

Specifications

Albert steel pole 690070 hot-dip galvanised and painted, Cylindrically stepped. For post-top luminaires and 7,000 mm above floor level, with earth piece 1,000 76 door, to accommodate a cable transition box 690036.Colour to choice, according to RAL colour chart.

Features
Socket lockable Product-Icon The socket is lockable, the key is removable.
The socket is lockable, the key is removable.
Top end diameter
76 mm
Weight 61,00 kg
Model

Cylindrical

Stepped shape

Yes

Diameter at base

114 mm

Wall thickness

3 mm

Material

Steel

Surface protection

Lacquered

Light centre height

7 m

Total length

8 m

Total length

6001 – 8000 mm

Shape

Eckig

Documents and files
Data sheet

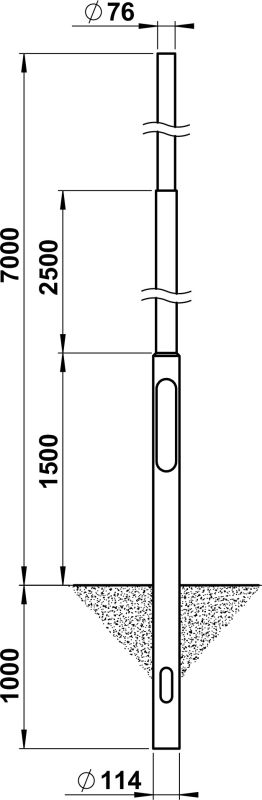

Dimensioned drawing
PDF | 36 KB
Full catalog 21 / 22
PDF | 39 MB
Accessories
690036 - KÜK Type No. 690036 show
