Data sheet
Article number 692318
Surface mounted ceiling spotlight
type ..2318
€356,10
Manufacturer's Suggested Retail Price excl. 19% VAT
Description
Albert ceiling mounted spotlight 692318
made of stainless steel with separate mounting plate. Equipped with1 x LED 8.0 W, warm white 3000K, 800 lm Protection class IP 44 – protection class : stainless steel Dimensions: d 103 x 95 mm
Features
Luminaire has IP 44 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
8 W
Rated luminous flux according to IEC 62722-2-1
800 lm
Colour temperature
3000 K
Material cover
Glass transparent
Documents and files
Assembly instruction

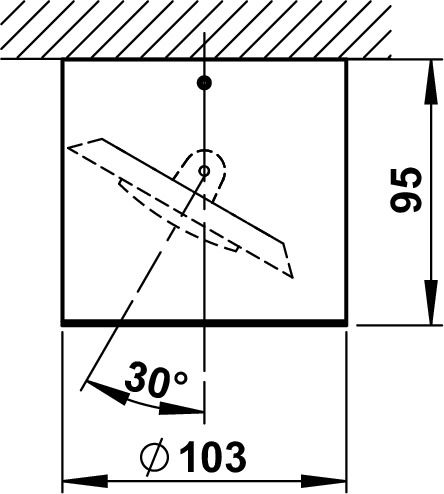

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Spare parts
| 90220111 - G 111, ESG glass | show |
Additional information
| Weight | 0,80 kg |
|---|---|
| Nominal voltage | 230 V |
| Suitable for ceiling mounting | Yes |
| Suitable for pedestal/floor mounting | Yes |
| Dimming phase cut-off | Yes |
| Type of control gear | LED operating device voltage-controlled |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| Material housing | Stainless steel |
| Rated luminous flux according to IEC 62722-2-1 | 800 lm |
| Colour housing | Stainless steel |
| With control gear | Yes |
| Outer diameter | 103 mm |
| Surface brushed | Yes |
| Adjustability | Not adjustable |
| Voltage type | AC |
| Colour temperature | 3000 K |
| Material cover | Glass transparent |
| No dim function | Yes |
| Luminous flux | 800 lm |
| Light output | Direct |
| Lamp type | LED exchangeable |
| Unified Glare Ratio (UGR) | 1 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Light sharing | Symmetric |
| Suitable for lamp power | 8 W |
| Height/depth | 95 mm |
| Power factor | 0.9 |
| Flickering value Pst LM | 1 |
| Number of poles | 3 |
| Colour rendering index CRI | 80-89 |
| Conductor cross section | 2.5 mm² |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Colour of light | White |
| Light output | 1-seitig |
| Max. system power | 8 W |
| Mounting Type | Decke |
| Connection type | Screwed terminal |
| Beam angle | Medium beam 21-40° |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Degree of protection (IP) | IP44 |
| Stroboscope effect value SVM | 0.4 |
| Connectable conductor cross section | 0.75 – 2.5 mm² |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Height | < 700 mm |
| Exchangeable control gear | Yes |
| Protection class | I |
| Suitable for surface mounting | Yes |
| Type of wiring | Ending |
| Beam angle adjustable | Continuously variable |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Shape | Eckig |
