Article number Select a color, please

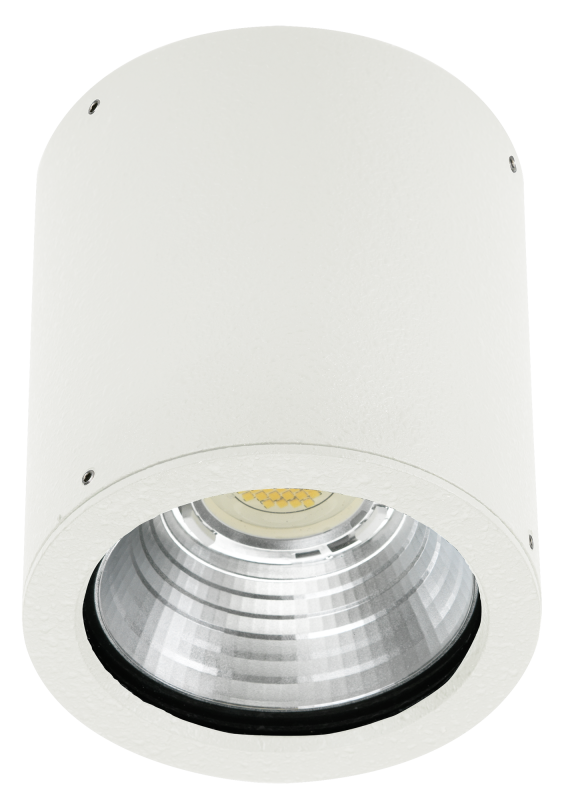

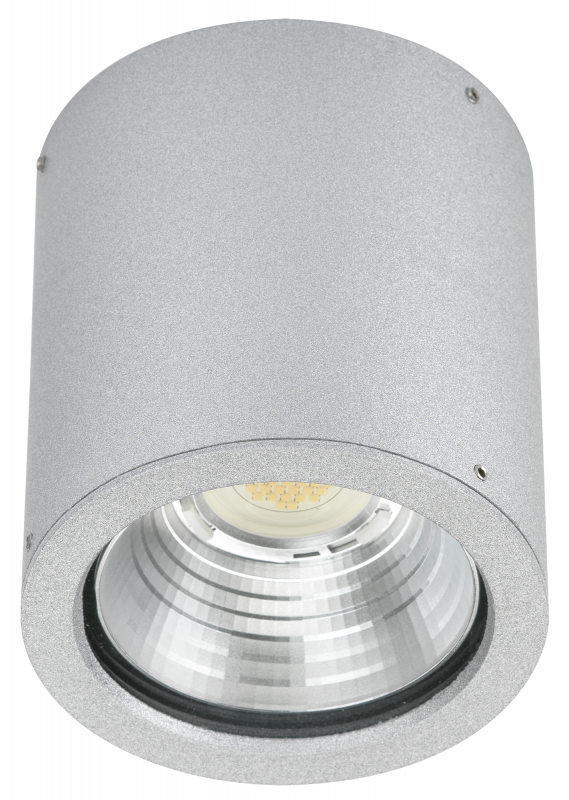

Surface mounted ceiling spotlight

type ..2380

271,20303,40

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
12 W
Rated luminous flux according to IEC 62722-2-1
1200 lm
Colour temperature
3000 K
Material cover
Glass transparent
Weight N/A
Suitable for surface mounting

Yes

Suitable for ceiling mounting

Yes

Suitable for pedestal/floor mounting

Yes

Dimming phase cut-off

Yes

Suitable for number of lamps

1

Outer diameter

110 mm

Surface protection

Lacquered

Type of control gear

LED operating device voltage-controlled

Luminous flux

1200 lm

Nominal voltage

230 V

Voltage type

AC

Adjustability

Not adjustable

With control gear

Yes

Light sharing

Symmetric

Protection class

I

Number of poles

3

Max. system power

12 W

Connectable conductor cross section

0.75 – 2.5 mm²

No dim function

Yes

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Height/depth

125 mm

Power factor

0.9

Beam angle

Medium beam 21-40°

Type of wiring

Ending

Colour rendering index CRI

80-89

Colour consistency (McAdam ellipse)

SDCM3

Light output

Direct

Degree of protection (IP)

IP44

Connection type

Screwed terminal

Energy efficiency class of the provided exchangeable built-in lamp

E

Conductor cross section

2.5 mm²

Colour of light

White

Shape

Eckig

Mounting Type

Decke

Height

< 700 mm

Exchangeable control gear

Yes

Flickering value Pst LM

1

Light output

1-seitig

Beam angle adjustable

Continuously variable, No

Stroboscope effect value SVM

0.4

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Unified Glare Ratio (UGR)

1

Style

Landhaus

Documents and files
Data sheet
Assembly instruction
PDF | 30 KB

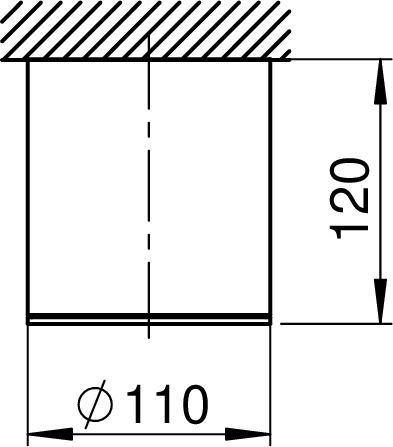

Dimensioned drawing
