Data sheet
Article number
Select a color, please
Vario post-top luminaire
type ..0807
€1.947,50
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire can be operated with 230 V, 0/50-60 Hz.
Luminaire has IP 65 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
115 W
Rated luminous flux according to IEC 62722-2-1
3800 lm
Colour temperature
3000 K
Material cover
Glass transparent
Suitable for spigot size
76 mm
Recommendations
This product is suitable for light poles with a pole top end diameter of 76mm.
Documents and files
Assembly instruction

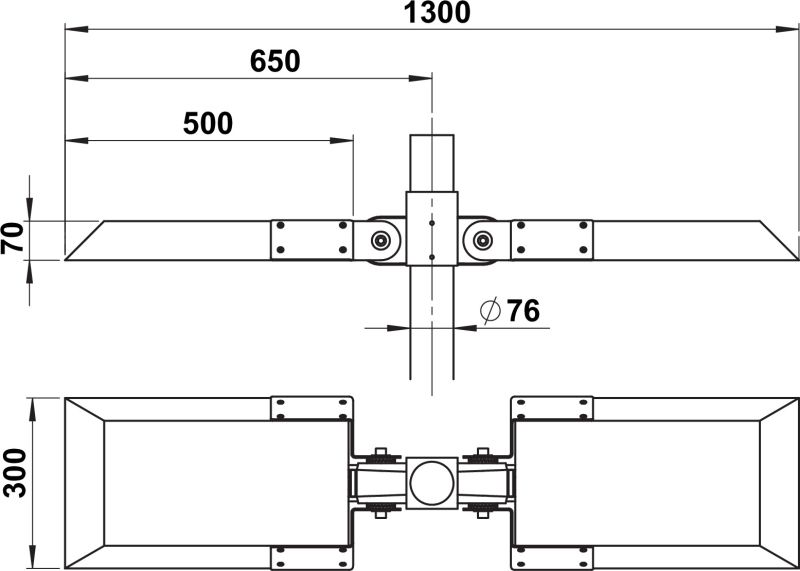

Dimensioned drawing
Offertext
For: 620807
Offertext
For: 660807
Full catalog 21 / 22
Spare parts
| 90220465 - G 465, rectangular pane ESG | show |
Additional information
| Weight | N/A |
|---|---|
| Mounting Type | Post top |
| Lamp type | LED exchangeable |
| Power factor | 0.9 |
| Light distributor | Refractor lens |
| No dim function | Yes |
| Type of control gear | LED operating device current-controlled |
| Protection class | I |
| Voltage type | AC/DC |
| Material cover | Glass transparent |
| With light source | Yes |
| With control gear | Yes |
| Suitable for number of lamps | 2 |
| Material housing | Aluminium |
| Degree of protection (IP) | IP65 |
| Suitable for lamp power | 115 W |
| Nominal voltage | 230 V |
| Colour housing | Anthracite, Black |
| Surface protection | Lacquered |
| Conductor cross section | 2.5 mm² |
| Length | 1300 mm |
| Width | 300 mm |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Highest energy efficiency class of the exchangeable lamp | A+ |
| Height/depth | 70 mm |
| Max. system power | 115 W |
| Number of poles | 3 |
| Cable length | 0 m |
| Colour temperature | 3000 K |
| Rated luminous flux according to IEC 62722-2-1 | 3800 lm |
| Light type | Mastaufsatzleuchte |
| Type of wiring | Suitable for through wiring |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Suitable for spigot size | 76 mm |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Adjustable optics | Yes |
| Connection type | Screwed terminal |
| Colour rendering index CRI | 80-89 |
| Colour of light | White |
| Height | < 700 mm |
| Exchangeable control gear | Yes |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Shape | Eckig |
