Data sheet
Article number
Select a color, please

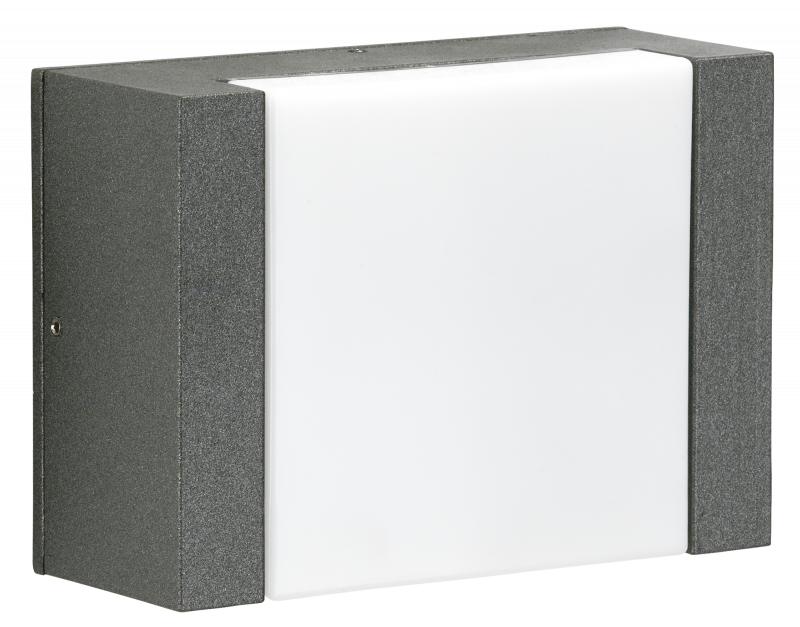

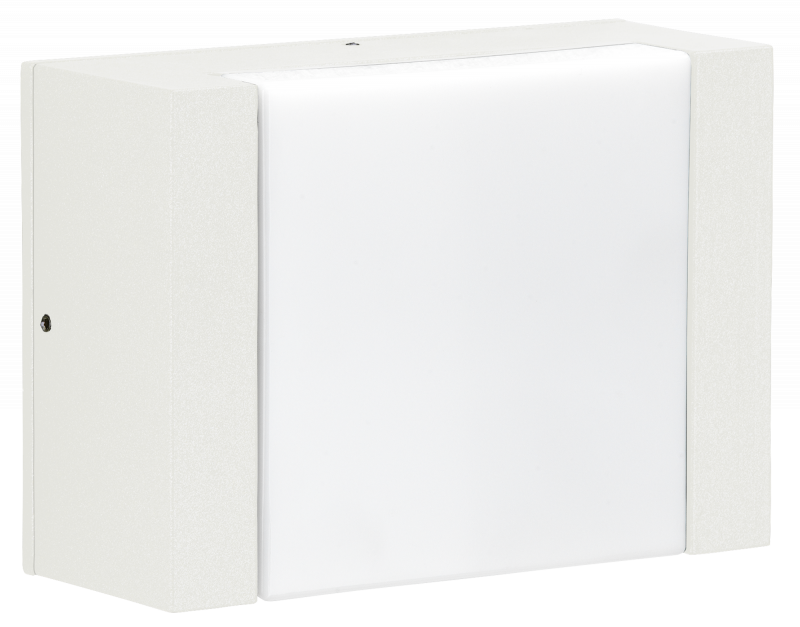

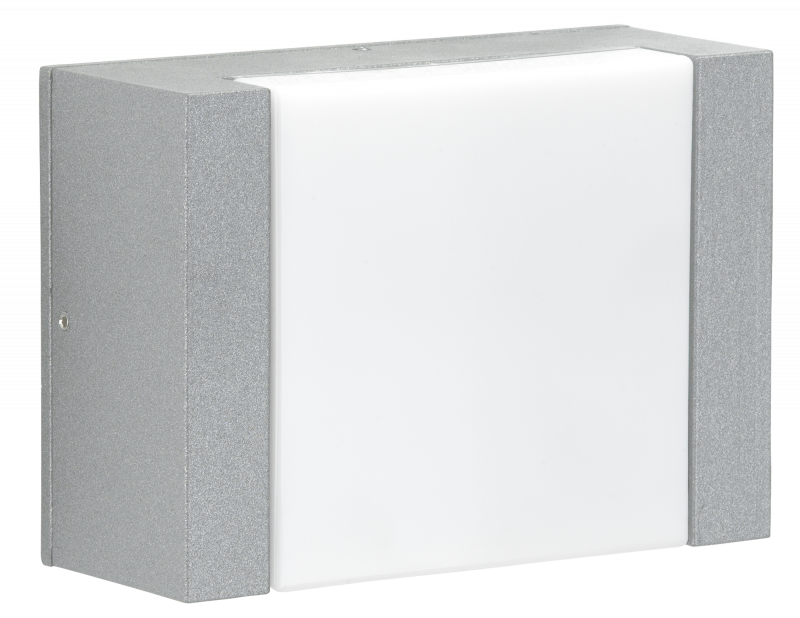

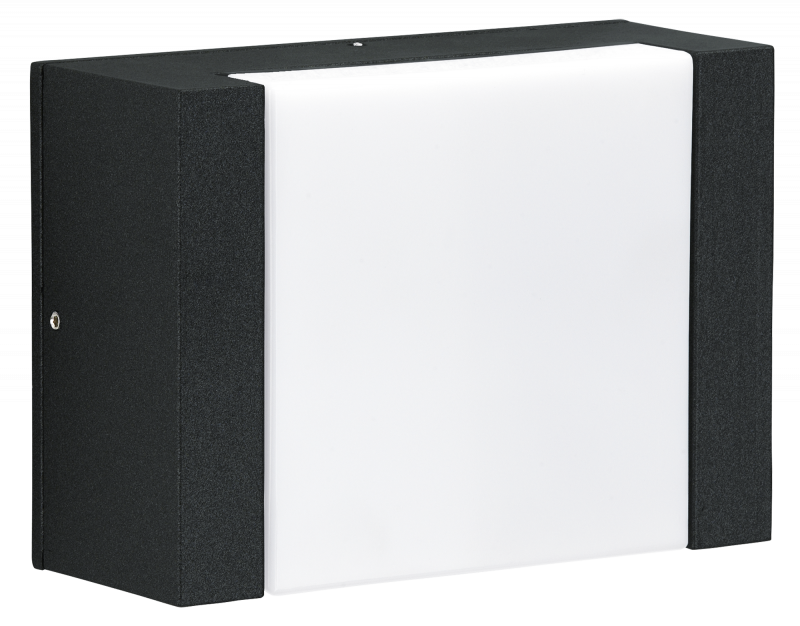

Wall and ceiling light
type ..0331
€223,10 – €255,30
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
5 W
Rated luminous flux according to IEC 62722-2-1
480 lm
Colour temperature
3000 K
Material cover
Plastic, opal
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | Yes |
| With control gear | Yes |
| Nominal voltage | 230 V |
| Suitable for number of lamps | 1 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Dimming phase cut-off | Yes |
| Voltage type | AC |
| Light output | Direct |
| Degree of protection (IP) | IP54 |
| Protection class | I |

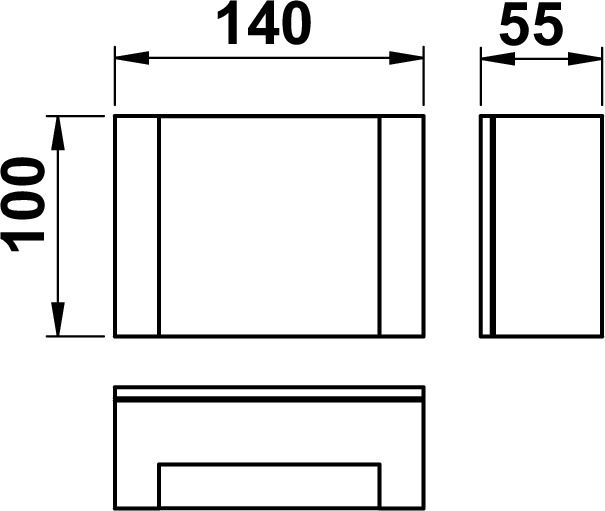

| Width | 140 mm |
| Light sharing | Symmetric |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Beam angle | Open beam/diffuse |
| Colour rendering index CRI | 80-89 |
| Style | Modern |
| Connection type | Screwed terminal |
| Height/depth | 100 mm |
| Power factor | 0.9 |
| Number of poles | 3 |
| Max. system power | 5 W |
| No dim function | Yes |
| Colour of light | White |
| Stroboscope effect value SVM | 0.4 |
| Exchangeable control gear | Yes |
| Dimming depending on control gear | Yes |
| Conductor cross section | 2.5 mm² |
| Length | 55 mm |
| Mounting Type | Decke, Wand |
| Light output | 1-seitig |
| Height | < 700 mm |
| Surface protection housing | Lacquered |
| Type of wiring | Ending |
| Type of control gear | LED operating device voltage-controlled |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Flickering value Pst LM | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Unified Glare Ratio (UGR) | 1 |
| Shape | Eckig |
Documents and files
Data sheet
Spare parts
| 90260492 - G 492, PMMA square tube | show |
