Data sheet
Article number
Select a color, please
Wall and ceiling light
type ..0332
€243,90 – €280,60
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
5 W
Rated luminous flux according to IEC 62722-2-1
480 lm
Colour temperature
3000 K
Material cover
Plastic, opal
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Colour rendering index CRI | 80-89 |
| Voltage type | AC |
| Nominal voltage | 230 V |
| Type of control gear | LED operating device voltage-controlled |
| With control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Dimming phase cut-off | Yes |
| Suitable for number of lamps | 1 |
| Suitable for surface mounting | Yes |
| Max. system power | 5 W |
| Colour of light | White |

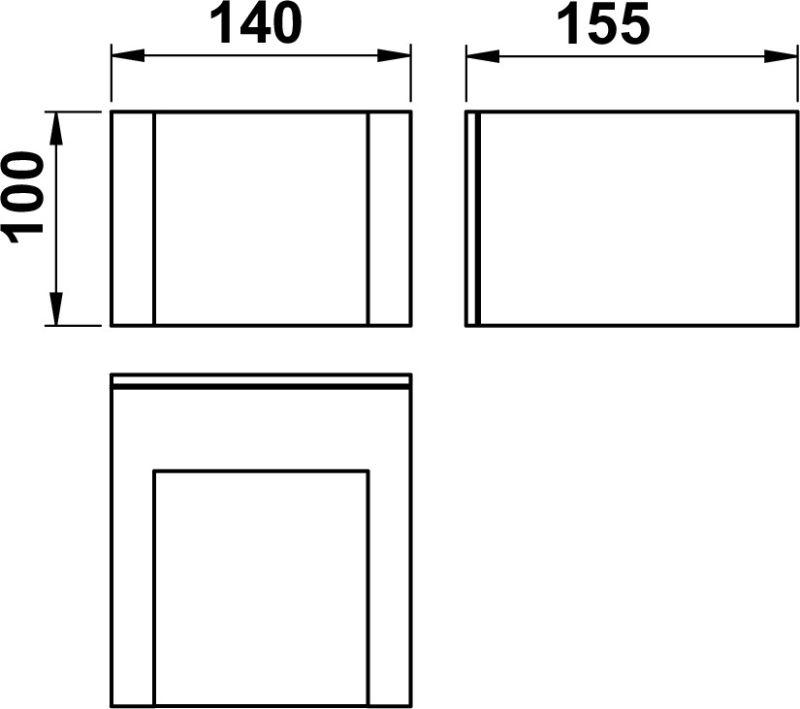

| Width | 140 mm |
| Dimming depending on control gear | Yes |
| Style | Modern |
| Connection type | Screwed terminal |
| Power factor | 0.9 |
| Length | 155 mm |
| Light sharing | Symmetric |
| No dim function | Yes |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Type of wiring | Ending |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Stroboscope effect value SVM | 0.4 |
| Exchangeable control gear | Yes |
| Protection class | I |
| Degree of protection (IP) | IP54 |
| Beam angle | Open beam/diffuse |
| Mounting Type | Decke, Wand |
| Light output | 1-seitig |
| Height | < 700 mm |
| Surface protection housing | Lacquered |
| Light output | Direct |
| Height/depth | 100 mm |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Flickering value Pst LM | 1 |
| Photobiological safety according to EN 62471 | RG1 |
| Unified Glare Ratio (UGR) | 1 |
| Shape | Eckig |
Documents and files
Data sheet
Spare parts
| 90260088 - G 88, PMMA square tube opal L = 112 mm | show |
Related products
-

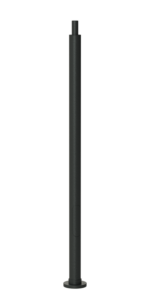

Aluminium mast type ..0013excl. 19% VAT
-
