Data sheet
Article number 696174
Wall and ceiling light
type ..6174
€188,90
Manufacturer's Suggested Retail Price excl. 19% VAT
Description

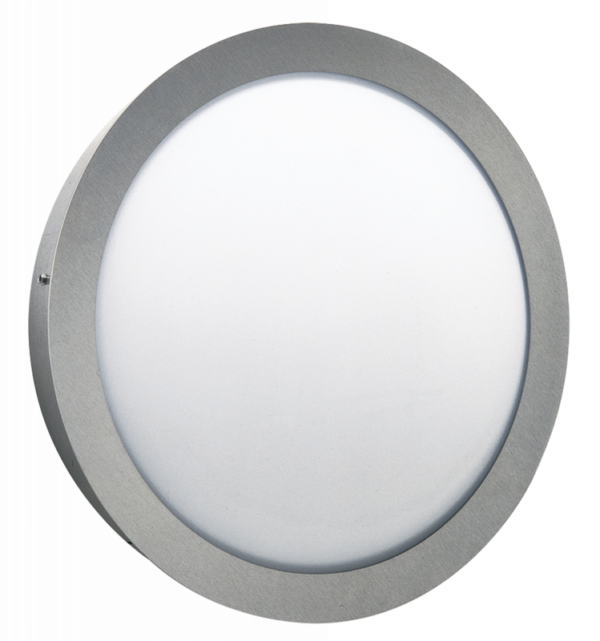

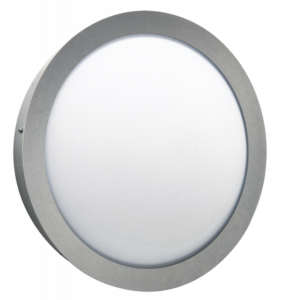

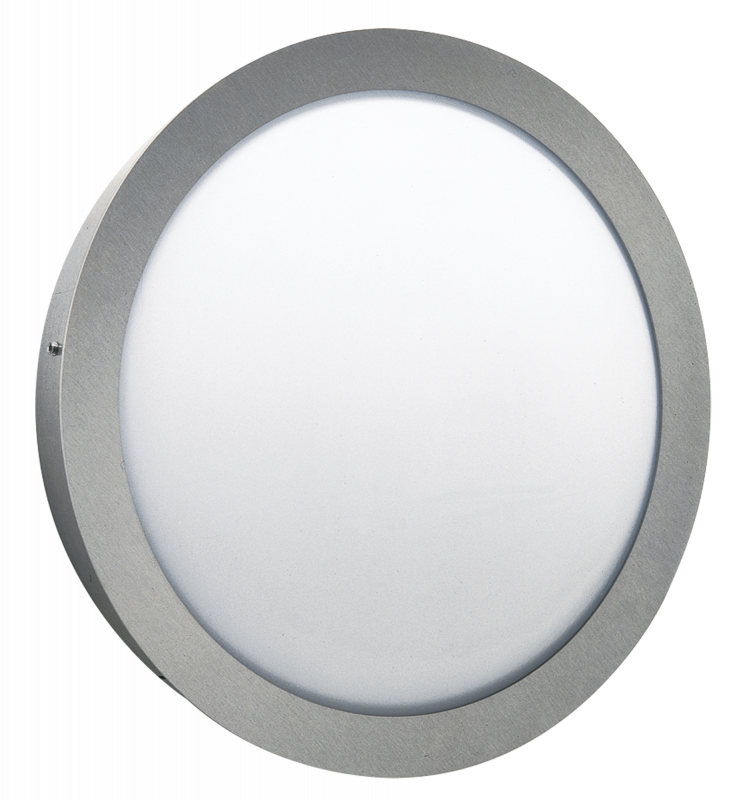

Albert wall and ceiling light 696174
in stainless steel with opal glass, with separate mounting plate in cast aluminium. Suitable for 1 x incandescent lamp A60 75 W, socket E27.protection class IP 44 – protection class : d 280 x 100 mm
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Documents and files
Assembly instruction

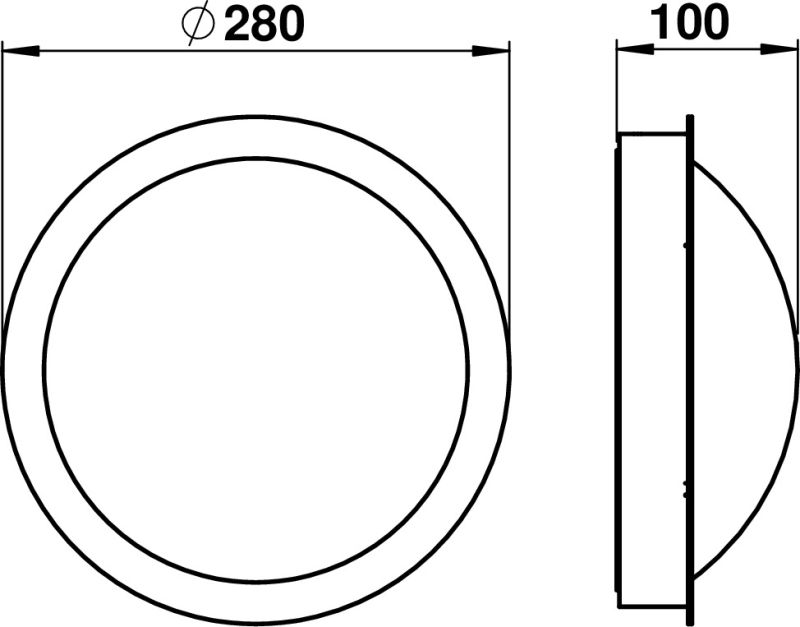

Dimensioned drawing
Light distribution curve - Eulumdat/LDT
Full catalog 21 / 22
Additional information
| Weight | 2,50 kg |
|---|---|
| Power factor | 1 |
| Dimming manufacturer's proprietary system | Yes |
| Suitable for number of lamps | 1 |
| Lamp holder | E27 |
| Material housing | Stainless steel |
| Type of control gear | Not required |
| Nominal voltage | 230 V |
| Protection class | I |
| Material cover | Glass opal |
| Colour housing | Stainless steel |
| Voltage type | AC |
| Dimming phase cut-off | Yes |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Suitable for surface mounting | Yes |
| Dimming phase cut-on | Yes |
| Suitable for lamp power | 1 – 75 W |
| Max. system power | 75 W |
| Light sharing | Symmetric |
| Beam angle | Open beam/diffuse |
| Light output | Direct |
| Light output | 1-seitig |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Suitable for ceiling mounting | Yes |
| No dim function | Yes |
| Width | 280 mm |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Type of wiring | Ending |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Degree of protection (IP) | IP44 |
| Mounting Type | Decke, Wand |
| Surface protection housing | Untreated |
| Dimming depending on control gear | Yes |
| Photobiological safety according to EN 62471 | RG1 |
| Suitable for wall mounting | Yes |
| Style | Edelstahl, Modern |
| Unified Glare Ratio (UGR) | 1 |
| Length | 100 mm |
| Shape | Eckig |
