Data sheet
Article number
Select a color, please
Wall and ceiling light
type ..6199
€184,20 – €212,10
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing

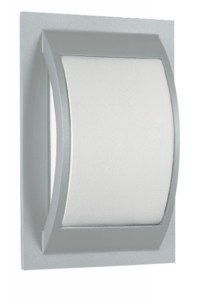

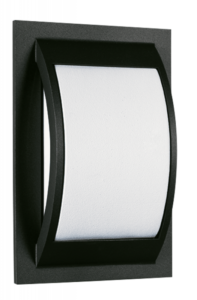

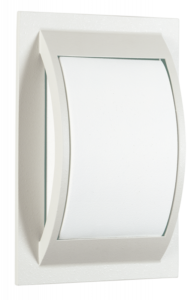

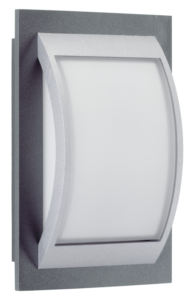

Anthracite, Black, Silver, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Suitable for surface mounting | Yes |
| Dimming depending on control gear | Yes |
| Type of control gear | Not required |
| Dimming manufacturer's proprietary system | Yes |
| Dimming phase cut-on | Yes |
| Voltage type | AC |
| Nominal voltage | 230 V |

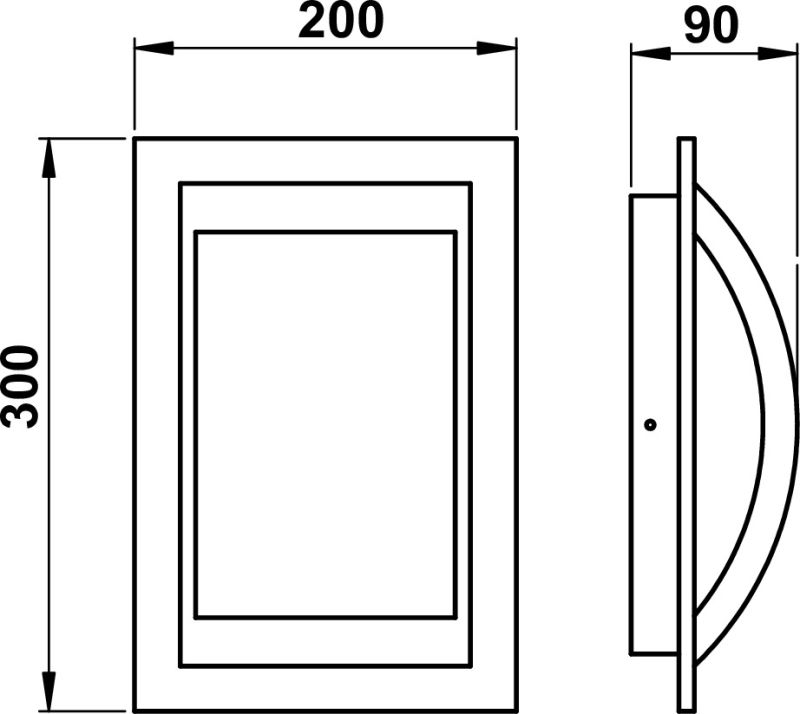

| Height/depth | 100 mm, 300 mm |
| Suitable for ceiling mounting | Yes |
| Protection class | I |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Conductor cross section | 2.5 mm² |
| Suitable for number of lamps | 1 |
| Dimming phase cut-off | Yes |
| Power factor | 1 |
| Type of wiring | Ending |
| Number of poles | 3 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Style | Bicolor, Edelstahl, Modern |
| Mounting Type | Decke, Wand |
| Light sharing | Symmetric |
| Beam angle | Open beam/diffuse |
| Light output | Direct |
| Width | 150 mm, 200 mm |
| Connection type | Screwed terminal |
| Shape | Eckig |
| Length | 100 mm, 90 mm |
| No dim function | Yes |
| Max. system power | 75 W |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Light output | 1-seitig |
| Height | < 700 mm |
| Surface protection housing | Lacquered |
| Degree of protection (IP) | IP44 |
| Photobiological safety according to EN 62471 | RG1 |
| Unified Glare Ratio (UGR) | 1 |
Documents and files
Data sheet
