Data sheet
Article number
Select a color, please
Wall and ceiling light
type ..6209
€171,40 – €197,20
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 44 protection.
The light source is replaceable.
Material housing
Aluminium
Colour housing

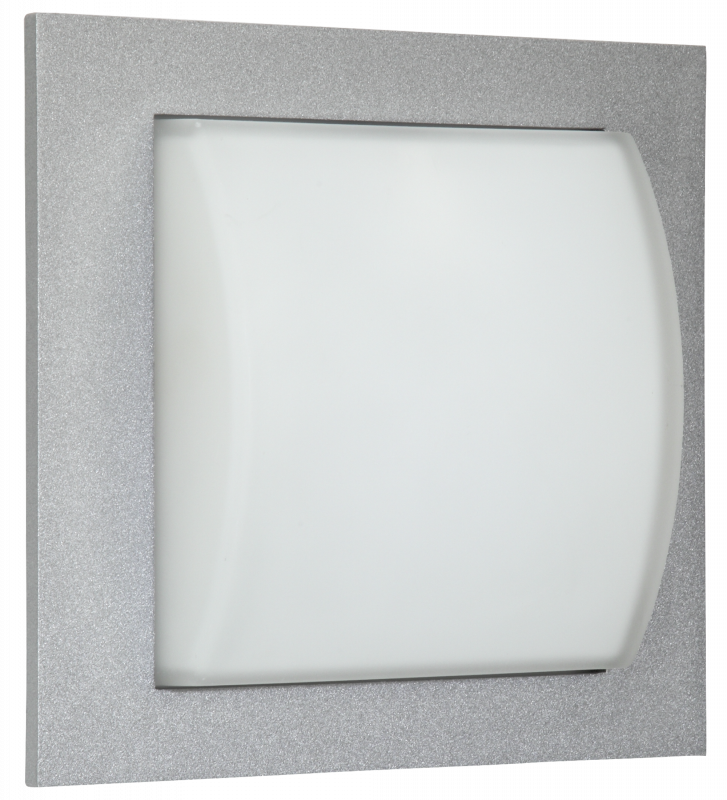

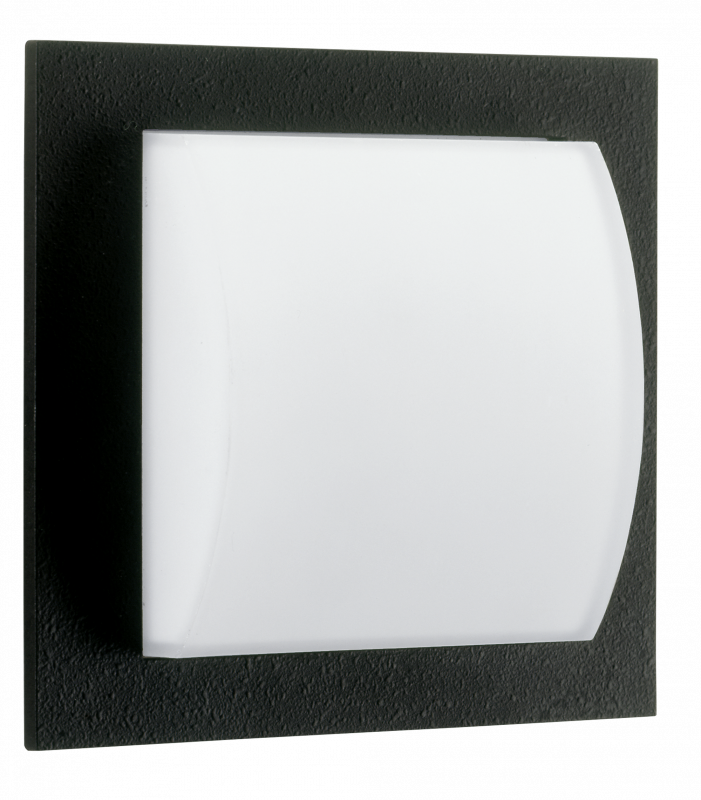

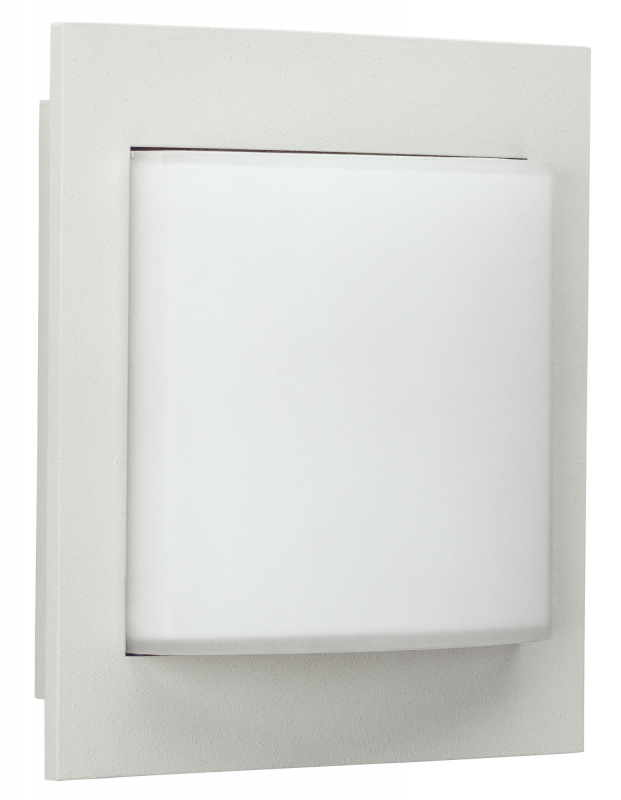

Black, Silver, White
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Voltage type | AC |
| Nominal voltage | 230 V |
| Suitable for number of lamps | 1 |
| Protection class | I |
| Degree of protection (IP) | IP44 |
| Type of control gear | Not required |
| Dimming manufacturer's proprietary system | Yes |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | Yes |
| Light output | Direct |
| Light sharing | Symmetric |
| Light output | 1-seitig |
| Power factor | 1 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Number of poles | 3 |
| Mounting Type | Decke, Wand |
| Beam angle | Open beam/diffuse |
| Width | 265 mm |
| Max. system power | 75 W |
| Dimming depending on control gear | Yes |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| No dim function | Yes |
| Height/depth | 300 mm |
| Length | 90 mm |
| Type of wiring | Ending |
| Conductor cross section | 2.5 mm² |
| Shape | Eckig |
| Height | < 700 mm |
| Style | Modern |
| Surface protection housing | Lacquered |
| Connection type | Screwed terminal |
| Photobiological safety according to EN 62471 | RG1 |
| Unified Glare Ratio (UGR) | 1 |
