Article number Select a color, please

Wall and ceiling light

type ..6262

245,30

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
Lamp replaceable Product-Icon The light source is replaceable.
The light source is replaceable.
Material housing
Aluminium
Colour housing
Black-Silver, Brown-Brass, White-Gold
Lamp holder
E27
Suitable for lamp power
1 - 75 W
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Suitable for surface mounting

Yes

Suitable for number of lamps

1

Length

100 mm

Type of control gear

Not required

Nominal voltage

230 V

Suitable for ceiling mounting

Yes

Dimming phase cut-off

Yes

Dimming manufacturer's proprietary system

Yes

Dimming depending on control gear

Yes

No dim function

Yes

Dimming phase cut-on

Yes

Beam angle

Open beam/diffuse

Mounting Type

Decke, Wand

Protection class

I

Degree of protection (IP)

IP44

Voltage type

AC

Lowest energy efficiency class of the exchangeable lamp

E

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Highest energy efficiency class of the exchangeable lamp

A++

Photobiological safety according to EN 62471

RG1

Number of poles

3

Max. system power

75 W

Power factor

1

Width

300 mm

Height/depth

265 mm

Connection type

Screwed terminal

Conductor cross section

2.5 mm²

Light output

Direct

Light sharing

Symmetric

Light output

1-seitig

Height

< 700 mm

Surface protection housing

Lacquered

Type of wiring

Ending

Unified Glare Ratio (UGR)

1

Style

Landhaus

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 36 KB

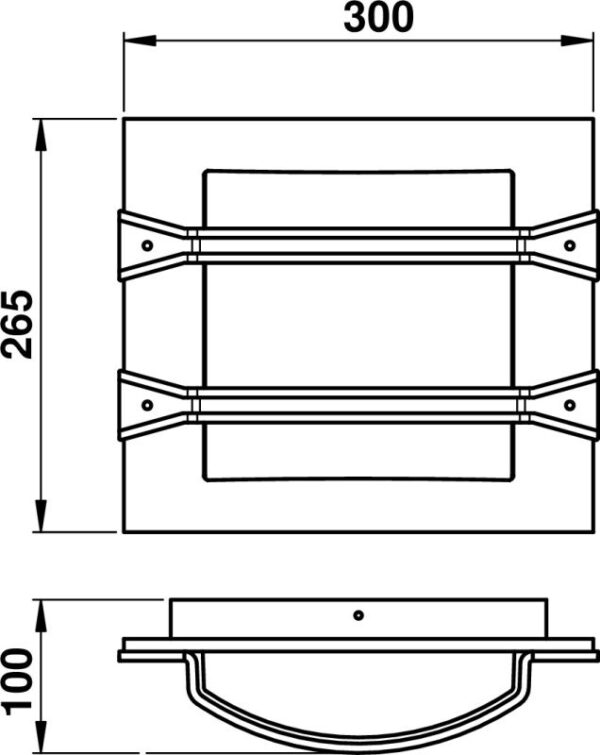

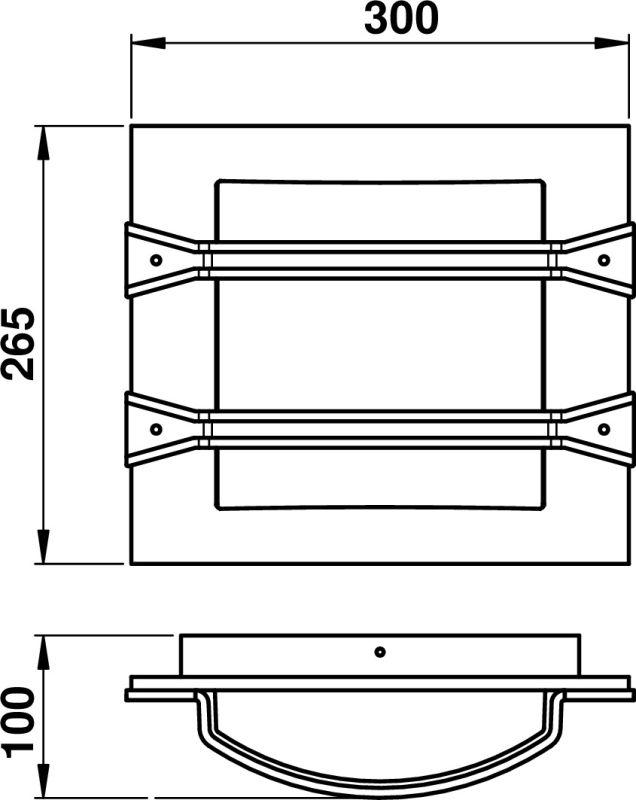

Dimensioned drawing
PDF | 22 KB
Light distribution curve - Eulumdat/LDT
LDT | 3 KB
Offertext
For: 606262
TXT | 210 B
Offertext
For: 656262
TXT | 210 B
Offertext
For: 676262
TXT | 210 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210348 - G 348, opal glass show
Accessories
90750100 - LED Retrofit Classic show
90750101 - LED Retrofit Classic Sensor show
