Data sheet
Article number
Select a color, please

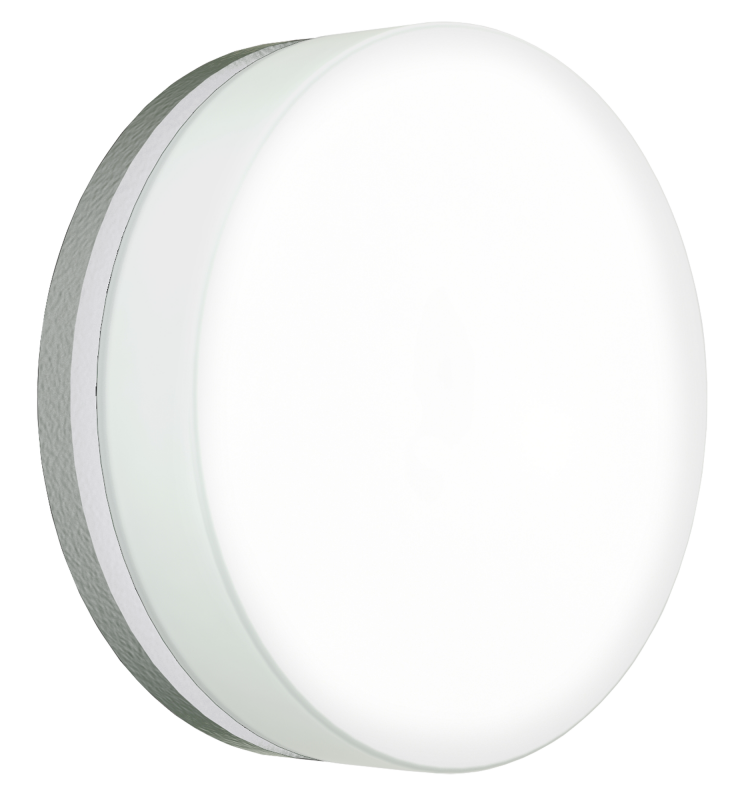

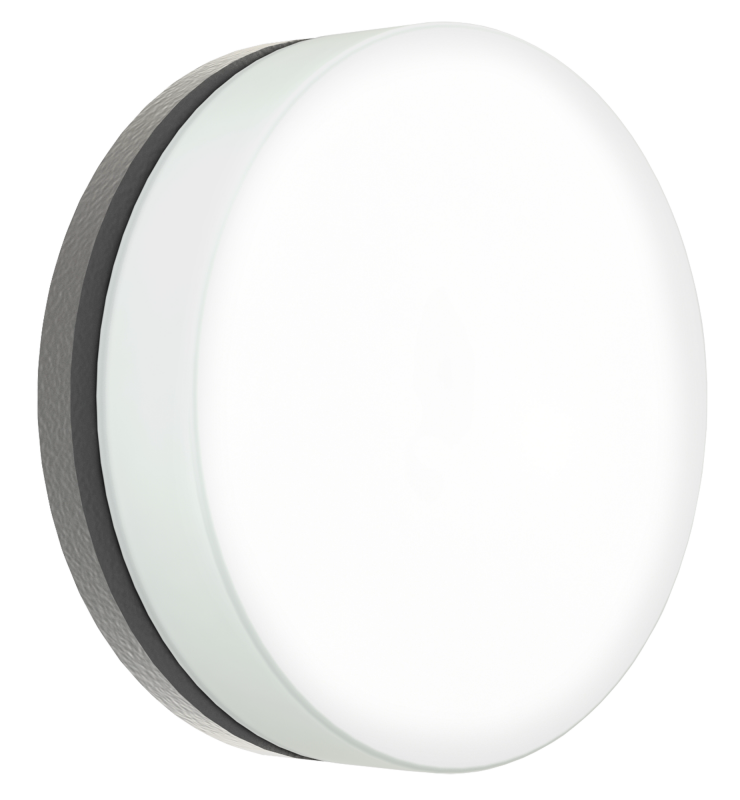

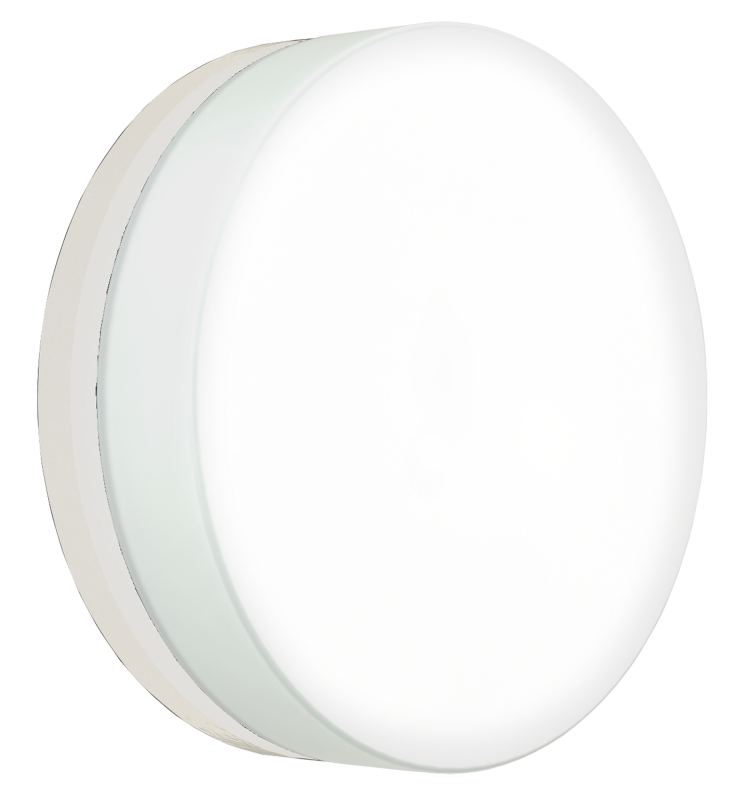

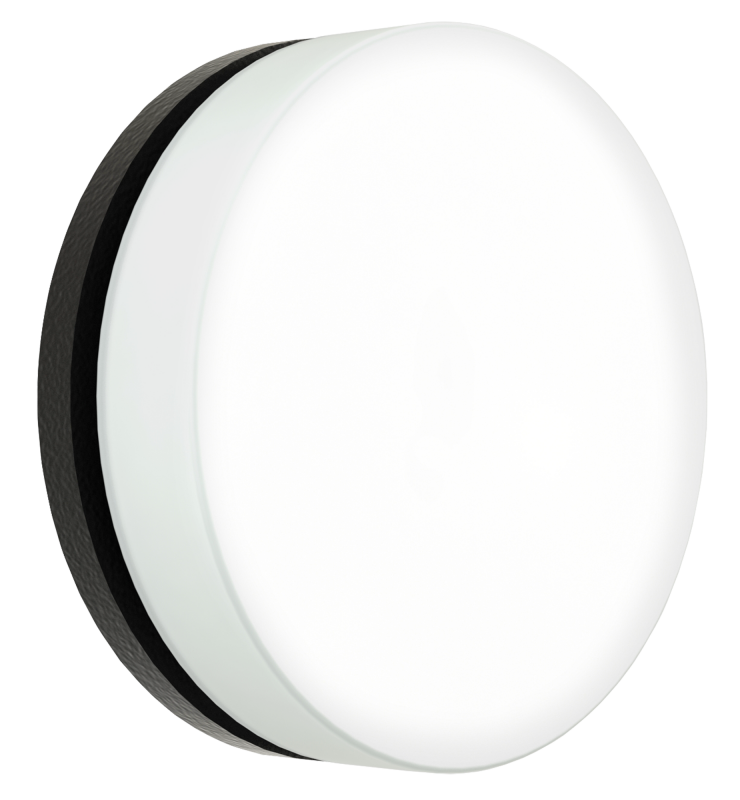

Wall and ceiling light
type ..6308
€170,90 – €196,40
Manufacturer's Suggested Retail Price excl. VAT
Features
Luminaire has IP 65 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Material housing
Aluminium
Colour housing
Anthracite, Black, Silver, White
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
24 W
Rated luminous flux according to IEC 62722-2-1
2400 lm
Colour temperature
3000 K
Material cover
Glass opal
| Weight | N/A |
|---|---|
| Suitable for wall mounting | Yes |
| Type of control gear | LED operating device voltage-controlled |
| With control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Power factor | 0.9 |
| Shape | Eckig |
| Dimming depending on control gear | Yes |
| Suitable for surface mounting | Yes |
| Height/depth | 75 mm |
| Suitable for number of lamps | 1 |
| Voltage type | AC |
| Nominal voltage | 230 V |
| Max. system power | 24 W |
| Colour of light | White |
| Colour rendering index CRI | 80-89 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| No dim function | Yes |
| Light sharing | Symmetric |
| Beam angle | Open beam/diffuse |
| Light output | Direct |
| Exchangeable control gear | Yes |
| Stroboscope effect value SVM | 0.4 |
| Number of poles | 3 |
| Conductor cross section | 2.5 mm² |
| Height | < 700 mm |
| Style | Modern |
| Type of wiring | Suitable for through wiring |
| Surface protection housing | Lacquered |

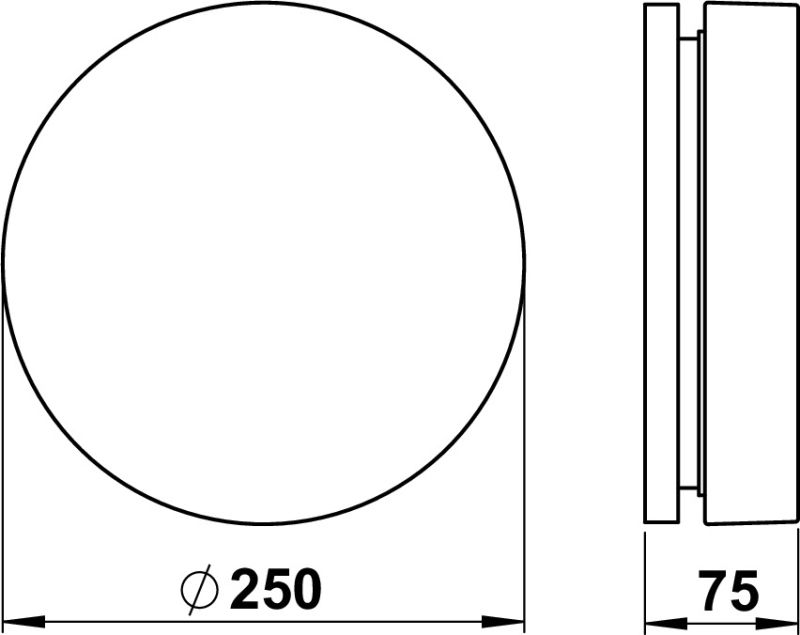

| Outer diameter | 250 mm |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Degree of protection (IP) | IP65 |
| Protection class | I |
| Connection type | Screwed terminal |
| Light output | 1-seitig |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Flickering value Pst LM | 1 |
| Mounting Type | Decke, Wand |
| Photobiological safety according to EN 62471 | RG1 |
| Unified Glare Ratio (UGR) | 1 |
Documents and files
Data sheet
Spare parts
| 90210411 - G 411, opal glass matt d = 250 mm | show |
