Article number Select a color, please

Wall and ceiling light

type ..6328

220,20

Clear
Features
IP44 Product-Icon Luminaire has IP 44 protection.
Luminaire has IP 44 protection.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Black, White
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Glass opal
Weight N/A
Suitable for wall mounting

Yes

Suitable for number of lamps

1

Voltage type

AC

Type of control gear

LED operating device voltage-controlled

Nominal voltage

230 V

Dimming phase cut-off

Yes

Suitable for ceiling mounting

Yes

Suitable for surface mounting

Yes

Max. system power

10 W

Beam angle

Open beam/diffuse

Light output

Direct

Energy efficiency class of the provided exchangeable built-in lamp

E

Degree of protection (IP)

IP44

Protection class

I

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Number of poles

3

Dimming depending on control gear

Yes

Colour rendering index CRI

80-89

Colour of light

White

Power factor

0.9

Length

100 mm, 110 mm

Outer diameter

250 mm

Type of wiring

Ending

Surface protection housing

Lacquered

Conductor cross section

2.5 mm²

Connection type

Screwed terminal

Shape

Eckig

Mounting Type

Decke, Wand

Light output

1-seitig

No dim function

Yes

Light sharing

Symmetric

Style

Modern

Colour consistency (McAdam ellipse)

SDCM3

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

1

Documents and files
Data sheet
Assembly instruction
PDF | 74 KB

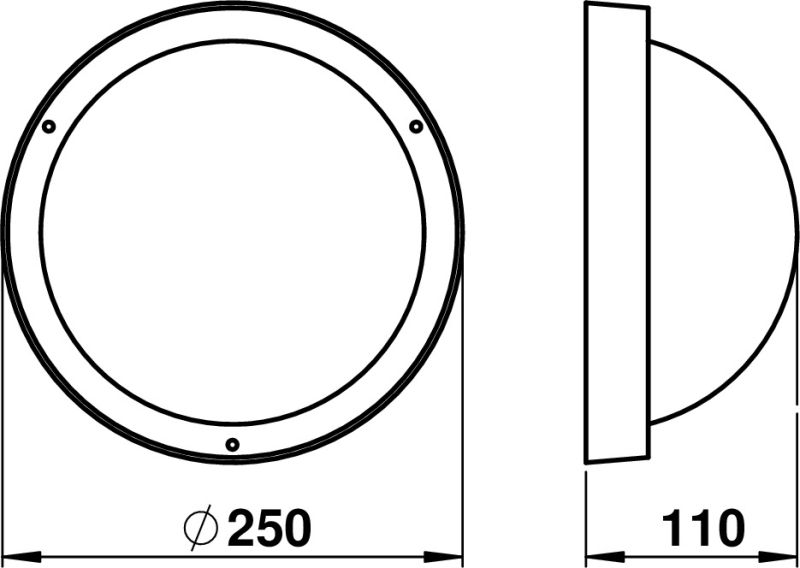

Dimensioned drawing
PDF | 20 KB
Light distribution curve - Eulumdat/LDT
LDT | 899 B
Offertext
For: 666328
TXT | 210 B
Offertext
For: 686328
TXT | 210 B
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90210063 - G 63, glass round, opal show
