Article number 626337

Wall and ceiling light

type ..6337

232,70

Specifications

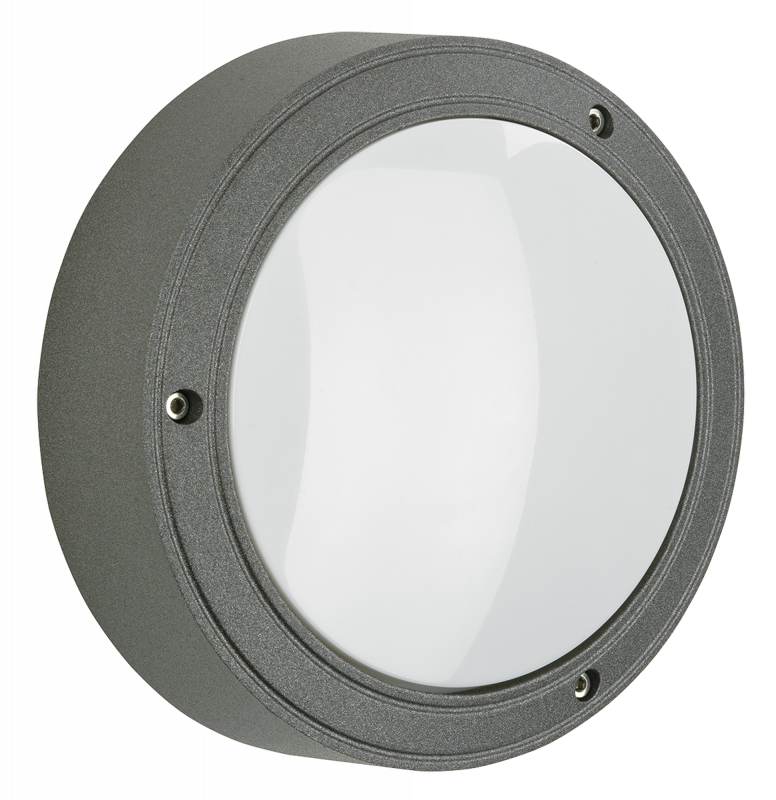

Wall and ceiling light, type no. 6337
Colour: anthracite, 1 x LED 10 W, 900 lm, aluminium casting, light colour warm white, 3000 K, acrylic glass opal

Features
IP65 Product-Icon Luminaire has IP 65 protection.
Luminaire has IP 65 protection.
LED Product-Icon Luminaire is equipped with LED components.
Luminaire is equipped with LED components.
LED Replaceable Product-Icon LED components can be replaced.
LED components can be replaced.
Impact resistant luminaire cover Product-Icon The luminaire cover is impact resistant IK 10.
The luminaire cover is impact resistant IK 10.
Overvoltage protection Product-Icon Luminaire is equipped with increased or additional overvoltage protection.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Aluminium
Colour housing
Anthracite
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
10 W
Rated luminous flux according to IEC 62722-2-1
900 lm
Colour temperature
3000 K
Material cover
Plastic, opal
Weight 1,40 kg
Colour rendering index CRI

80-89

Type of wiring

Suitable for through wiring

Rated ambient temperature according to IEC62722-2-1

15 – 25 °C

Suitable for surface mounting

Yes

Type of control gear

LED operating device voltage-controlled

Nominal voltage

230 V

Suitable for number of lamps

1

Voltage type

AC

Suitable for ceiling mounting

Yes

Protection class

I

Impact strength

IK10

Colour of light

White

Light sharing

Symmetric

Beam angle

Open beam/diffuse

Light output

Direct

Energy efficiency class of the provided exchangeable built-in lamp

E

Degree of protection (IP)

IP65

With control gear

Yes

No dim function

Yes

Conductor cross section

2.5 mm²

Power factor

0.9

Photobiological safety according to EN 62471

RG1

Colour consistency (McAdam ellipse)

SDCM3

Light output

1-seitig

Dimming depending on control gear

Yes

Height

< 700 mm

Exchangeable control gear

Yes

Height/depth

80 mm

Surface protection housing

Lacquered

Outer diameter

180 mm

Connection type

Screwed terminal

Number of poles

3

Suitable for wall mounting

Yes

Max. system power

10 W

Highest energy efficiency class of the exchangeable lamp

A++

Lowest energy efficiency class of the exchangeable lamp

E

Max. number of luminaires per miniature circuit breaker B16

20

Max. number of luminaires per miniature circuit breaker C16

30

Flickering value Pst LM

1

Stroboscope effect value SVM

0.4

Unified Glare Ratio (UGR)

1

Mounting Type

Decke, Wand

Shape

Eckig

Documents and files
Data sheet
Assembly instruction
PDF | 122 KB

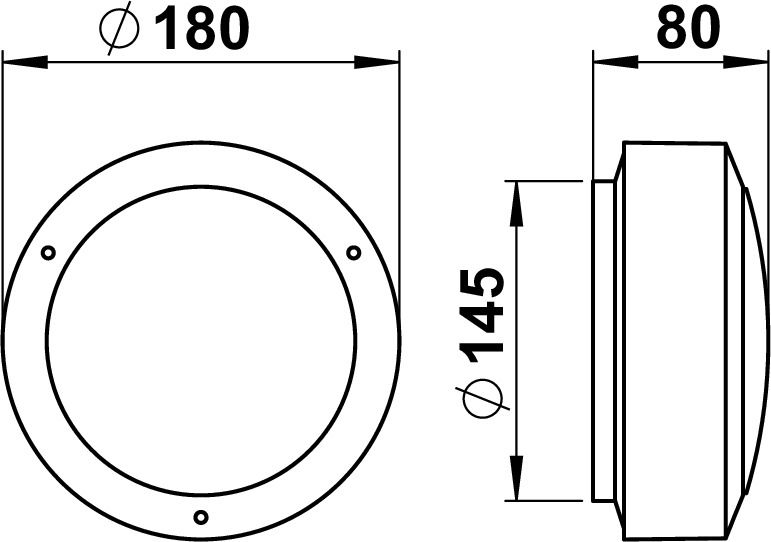

Dimensioned drawing
PDF | 106 KB
Light distribution curve - Eulumdat/LDT
LDT | 2 KB
Full catalog 21 / 22
PDF | 39 MB
Spare parts
90270416 - G 416, plexiglass opal show
