Data sheet
Article number 696352
Wall and ceiling light
type ..6352
€281,20
Manufacturer's Suggested Retail Price excl. 19% VAT
Specifications

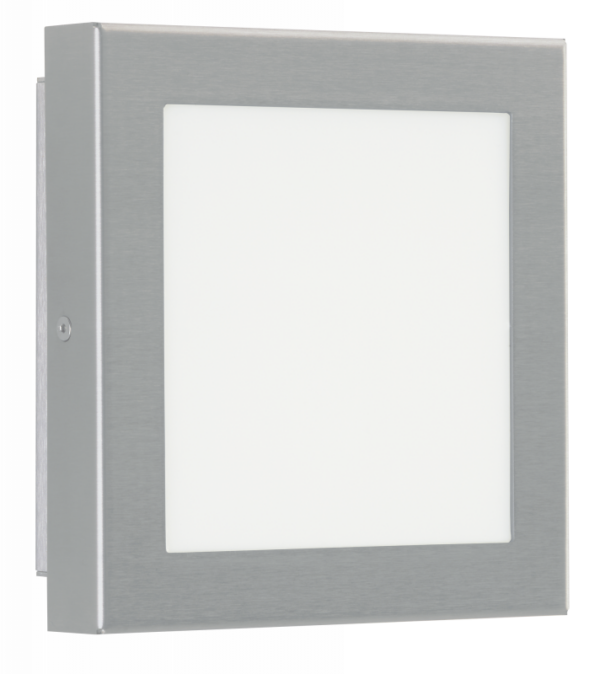

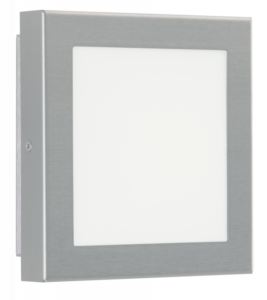

Albert wall and ceiling light 696352

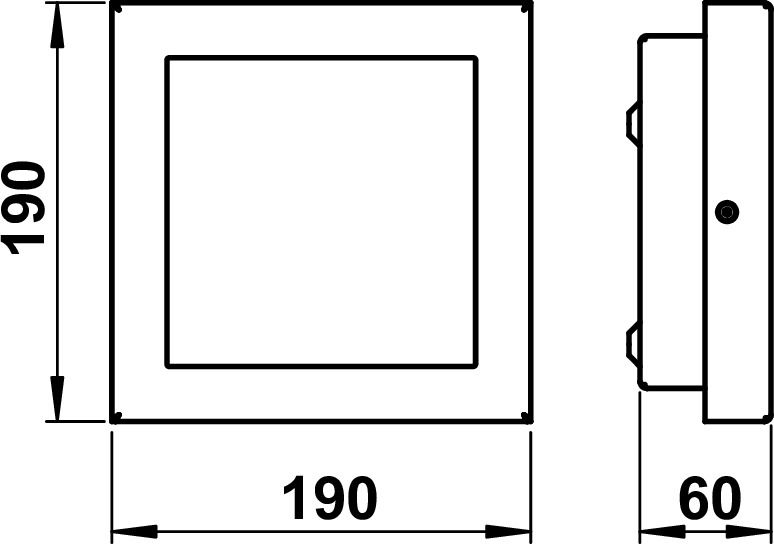

made of stainless steel with opal pane glass.1 x 8 W LED, warm white 3000 K, 880 IP 54 – protection class : 190 x 190 x 60 mm
Features
Luminaire has IP 54 protection.
Luminaire is equipped with LED components.
LED components can be replaced.
Luminaire is equipped with increased or additional overvoltage protection.
Material housing
Stainless steel
Colour housing
Stainless steel
Lamp type
LED exchangeable
With light source
Yes
Suitable for lamp power
8 W
Rated luminous flux according to IEC 62722-2-1
880 lm
Colour temperature
3000 K
Material cover
Glass structured
| Weight | 1,60 kg |
|---|---|
| Nominal voltage | 230 V |
| No dim function | Yes |
| Height/depth | 190 mm |
| Voltage type | AC |
| Width | 190 mm |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Colour rendering index CRI | 80-89 |
| Type of control gear | LED operating device voltage-controlled |
| Light sharing | Symmetric |
| With control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | Yes |
| Suitable for number of lamps | 1 |
| Dimming depending on control gear | Yes |
| Power factor | 0.9 |
| Rated ambient temperature according to IEC62722-2-1 | 15 – 25 °C |
| Colour of light | White |
| Dimming phase cut-off | Yes |
| Degree of protection (IP) | IP54 |
| Style | Edelstahl, Modern |
| Exchangeable control gear | Yes |
| Stroboscope effect value SVM | 0.4 |
| Height | < 700 mm |
| Photobiological safety according to EN 62471 | RG1 |
| Beam angle | Open beam/diffuse |
| Mounting Type | Decke, Wand |
| Light output | 1-seitig |
| Type of wiring | Suitable for through wiring |
| Number of poles | 3 |
| Unified Glare Ratio (UGR) | 1 |
| Surface protection housing | Untreated |
| Suitable for wall mounting | Yes |
| Light output | Direct |
| Max. system power | 8 W |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Highest energy efficiency class of the exchangeable lamp | A++ |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 30 |
| Flickering value Pst LM | 1 |
| Protection class | I |
| Conductor cross section | 2.5 mm² |
| Length | 60 mm |
| Connection type | Screwed terminal |
| Shape | Eckig |
Documents and files
Spare parts
| 90220306 - G 306, milk flashed glass | show |
